16端口千兆非网管交换机 16端口千兆非网管交换机

详细规格

Power

• Power Consumption Max. 9.6W
• Power Input (DC) 12 ~ 48 VDC
• Power Connector Type 4-pin removable terminal (power)
• Power Operating Current 0.8A @ 12 V
• Power Input (AC) -
• Power Input (PoE) -
• Power Input (Battery) -
• Redundant Dual Inputs Yes

Protection

• Reverse Polarity Present
• Overload Current Present

Environment

• Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
• Operating Temperature -40 ~ 75°C (-40 ~ 167°F)
• Temperature (Min. Operating) -40°C (-40°F)
• Temperature (Max. Operating) 75°C (167°F)

Mechanism

• Dimensions (W x H x D) 72 x 140 x 105 mm
• IP Rating IP30
• Weight 0.7 kg

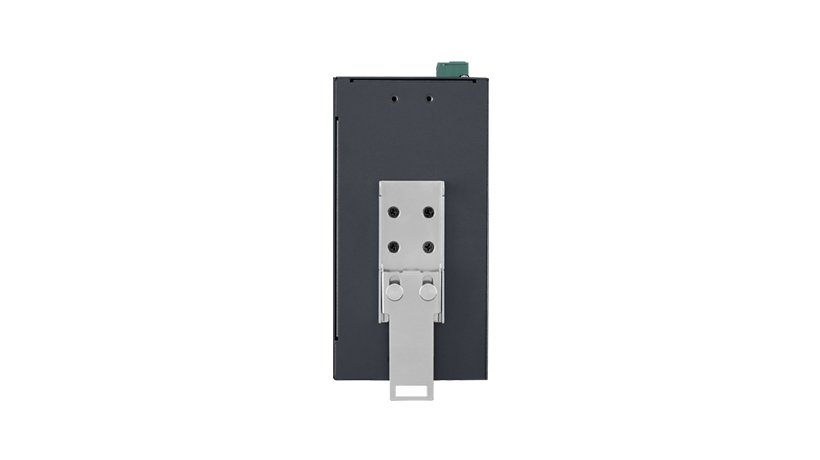

• Mounting (DIN-rail) Yes
• Mounting (Pole Mount) -
• Mounting (Rack Mount) -
• Mounting (Wall) Yes
• Mounting (Stack) -
• Enclosure (Plastic) -
• Mounting (Panel) -

Ethernet Communication

• RJ-45 Transmission Speed 10/100/1000 Mbps
• RJ-45 Port Number 16
• RJ-45 Port Connector Type RJ-45
• RJ-45 Transmission Distance 100 m
• Fiber Port Interface -
• Fiber Port Connector Type -
• Fiber Transmission Distance -
• Fiber Port Number -
• Fiber Transmission Speed -

Switch Properties

• MAC Table Size 8K
• Packet Buffer Size 4.1M bit
• Switch Fabric Speed 32Gbps
• Jumbo Frame 10K bytes

Certification

• Safety UL 62368
• EMI CE, FCC Class A, BSMI
• EMS EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)

Warranty

• Warranty Period 5 years

PoE Information

• PoE Budget -
• PoE Port Number -
• PoE Output -
• Support PoE No
