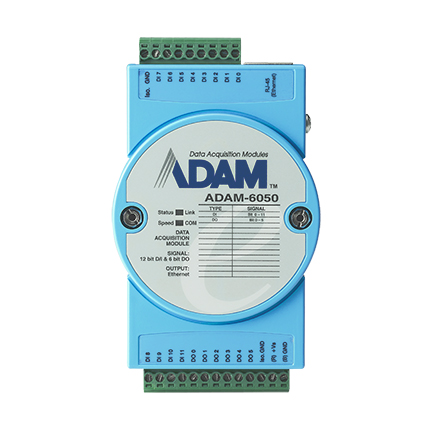

ADAM-6050-D1 18路隔离数字量I/O模块

详细规格

General

• Protocol Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
• Connectors 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal

Communications

• Interface Ethernet

Counter/Encoder Input

• Channels 12
• Max. Input Frequency 3 kHz

Isolated Digital Input

• Channels 12
• Input Voltage Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC

Environment

• Operating Temperature -40~70 °C (-40~158 °F)
• Isolation Voltage 2,000 VDC

Isolated Digital Output

• Channels 6
• Output Type Sink
• Output Voltage 0~30 VDC
• Sink Current 100 mA max./channel

Power Requirements

• Input Voltage 10~30 VDC
