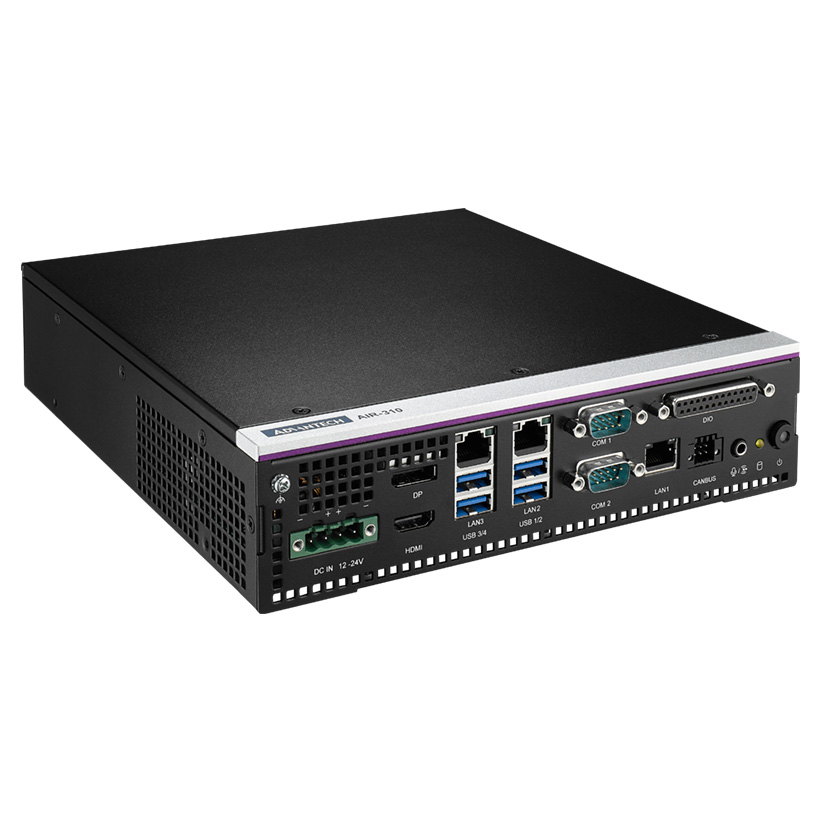

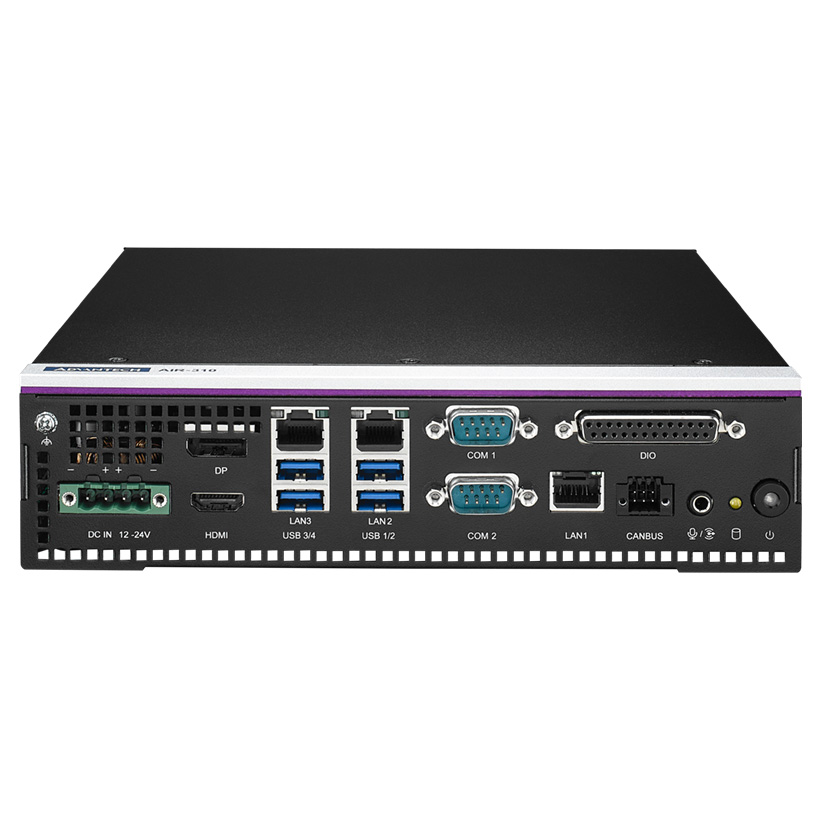

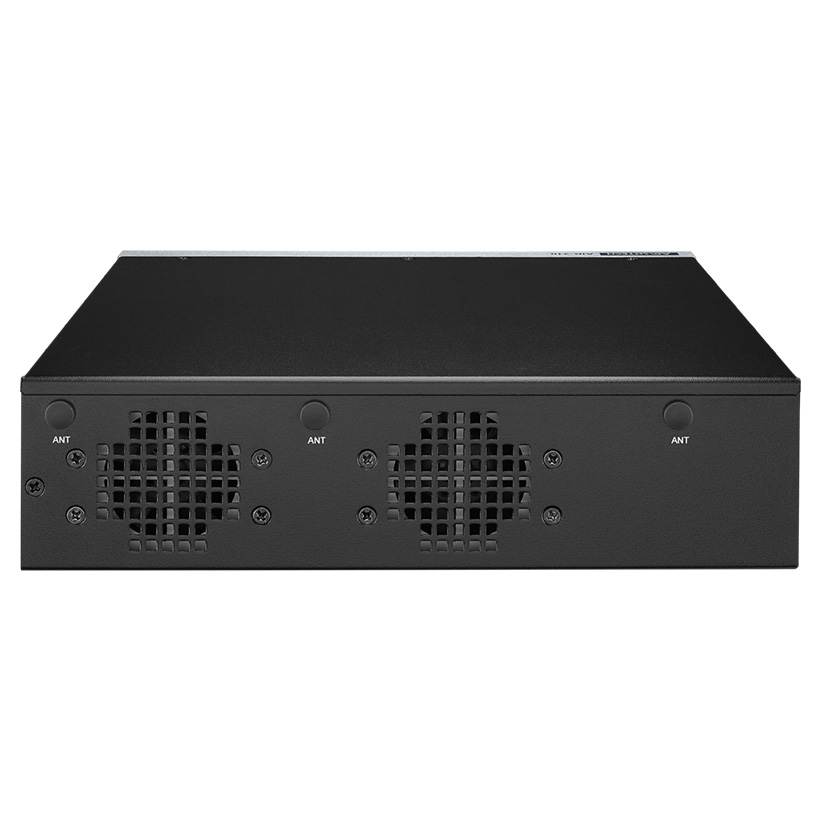

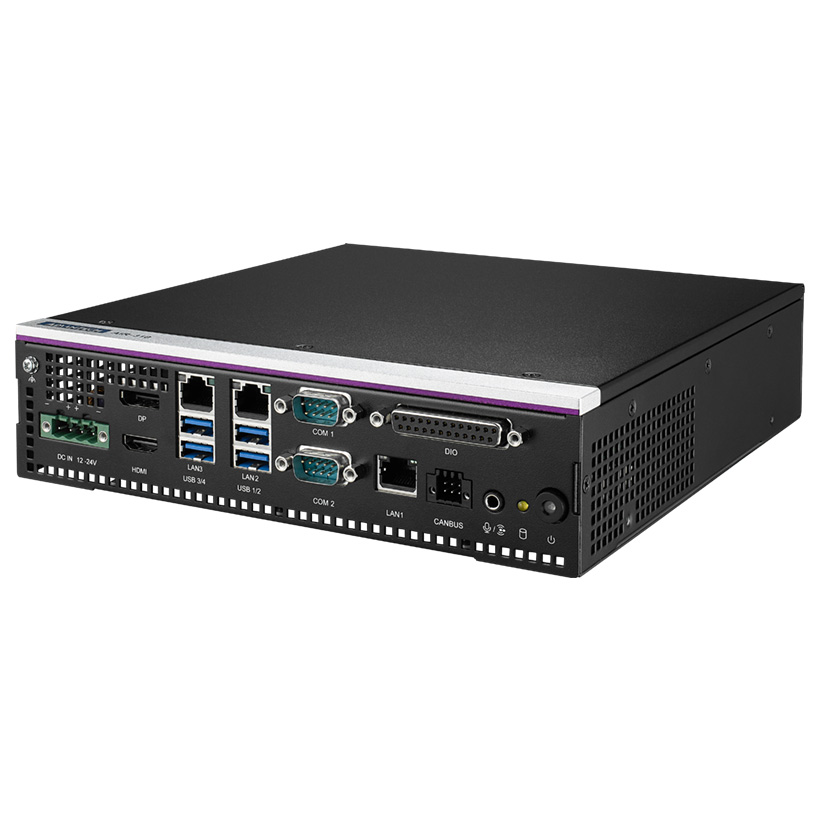

AIR-310-00A1U 研华 嵌入式AI边缘智能工控机，支持Intel 14th Gen Core i3/i5/i7/i9 MXM GPU

详细规格

I/O

• USB 4 x USB 3.0
• Serial port 2 x RS-232/422/485 port with auto flow control
• Digital I/O 16 bit DIO
• CANBus 2

Memory

• Technology DDR5 5600 MHz
• Max. Capacity 64GB (up to 32GB per SO-DIMM)
• Socket 2 x 262 pin DDR5 SO-DIMM

Processor

• Chipset H610E
• CPU Intel® 12/13/14th Gen Core™ I Processor
• BIOS AMI EFI 256 Mbit
• Frequency by processor
• Core Number Up to 24C
• CPU TDP 65W / 35W

Storage

• 2.5" HDD/SSD Supports 1 x 2.5" SATA III Drive Bay (Compatible with 9.5mm height)
• NVMe 1 x PCIex 4 with M.2 2280 M Key

Environment

• Operational Temperature 0 ~ 50° C with 0.7m/s air flow
• Storage Temperature -40 ~ 85℃

Other

• Watchdog Timer 255 levels timer interval, setup by software

Power

• Power Type AT / ATX
• Power Adaptor Optional
• Input Voltage 12 ~ 24 VDC

Ethernet

• LAN1 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
• LAN2 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN
• LAN3 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN

Graphics

• Chipset Intel® UHD Graphics 770
• Graphic Engine DirectX 12, OpenGL 4.5 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
• HDMI 1 x HDMI 2.0b: 4096x2160@60Hz
• GPU MXM Type A GPU Module Integration, NVIDIA Quadro or Intel Arc
• DP 1 x DP 1.4a: 4096x2160@60Hz

Audio

• Main System Realtek ALC888S, High Definition Audio, Line-out, Mic-in

Environment

• Relative Humidity 95% @ 40° C (non-condensing)
• Vibration During Operation With SSD/MXM : 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
• Shock During Operation With SSD/MXM: 30 G, IEC 60068-2-27, half sine, 11 ms duration

Certification

• EMC CE/FCC Class B, CCC, BSMI
• Safety Certifications UL, CB, CCC

Expansion

• M.2 1 x M.2 2230 E key for WIFI module

Mechanical

• Mounting Desk mounting
• Dimensions 215 x 225 x 55 mm
• Weight 2.5 kg (5.51 lb)

Others

• TPM TPM 2.0 built in

Software Support

• Microsoft Windows Windows 10/11 IoT Enterprise LTSC
• Linux Support
