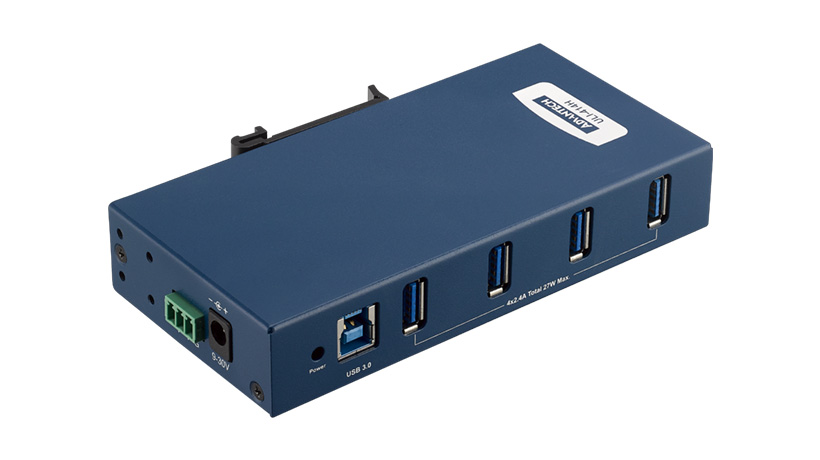

BB-USH204-B ULI-414H, 4-port Industrial USB 3.2 Gen 1 Hub

详细规格

Power

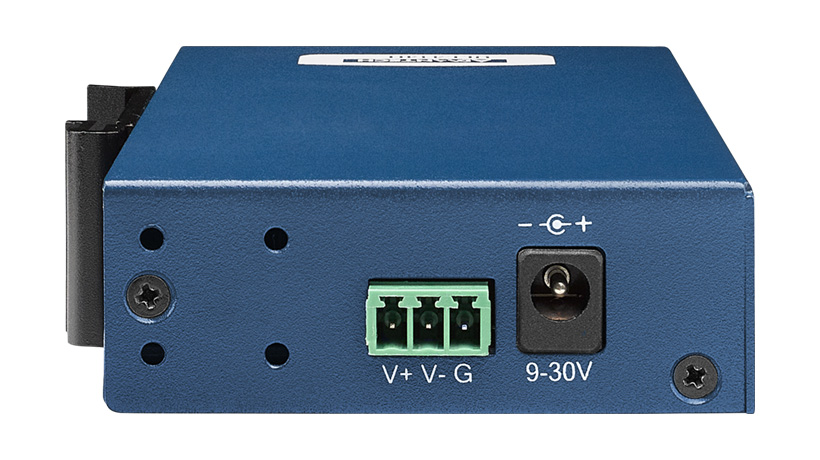

• Power Input (DC) 9 ~ 30 VDC

Protection

• Surge Protection 1 KV
• ESD Protection 8 kV (Contact) ; 15 kV (Air)

Mechanism

• Enclosure (Metal) Metal

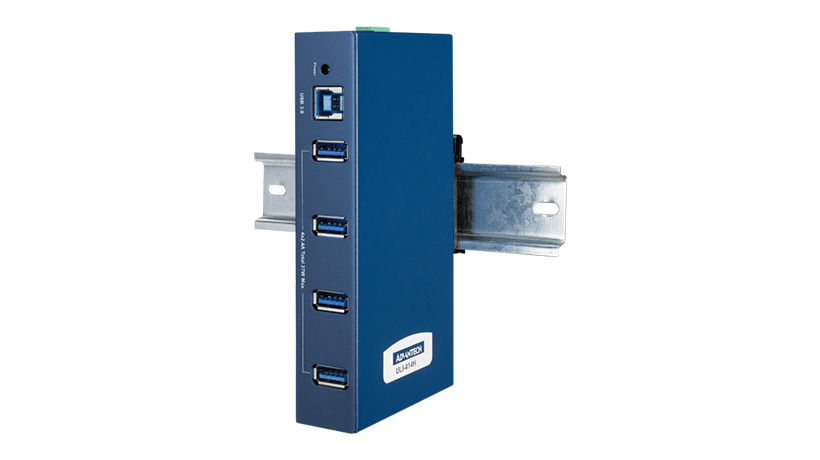

• Mounting (DIN-rail) Yes
• Mounting (Wall) Yes

Certification

• CE Yes
• FCC/IC Yes

Upstream USB Port

• Standard USB 3.2 Gen 1 / USB 3.0
• Maximum Transfer Rate SuperSpeed (5 Gbps)
• Connector Type Type B (Female)
• Port Number 1

Downstream USB Port

• Standard USB 3.2 Gen 1 / USB 3.0
• Maximum Transfer Rate SuperSpeed (5 Gbps)
• Connector Type Type A (Female)
• Port Number 4
• Supply Current 4 x 2.4A on any port to a maximum of 27W total (CDP)
