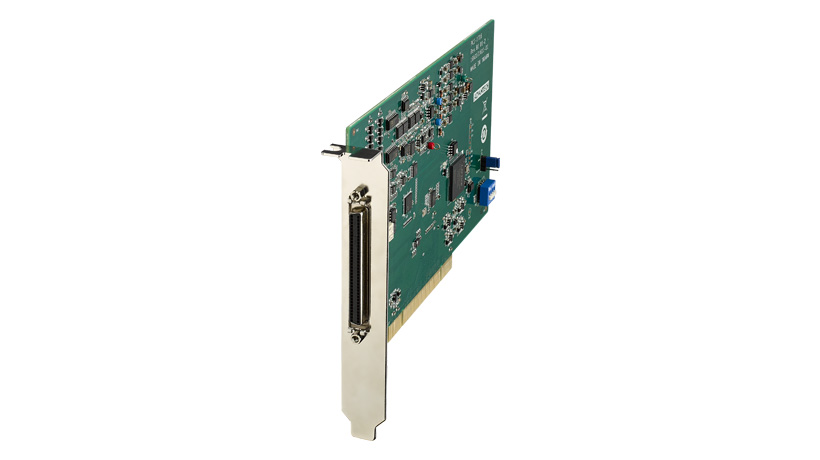

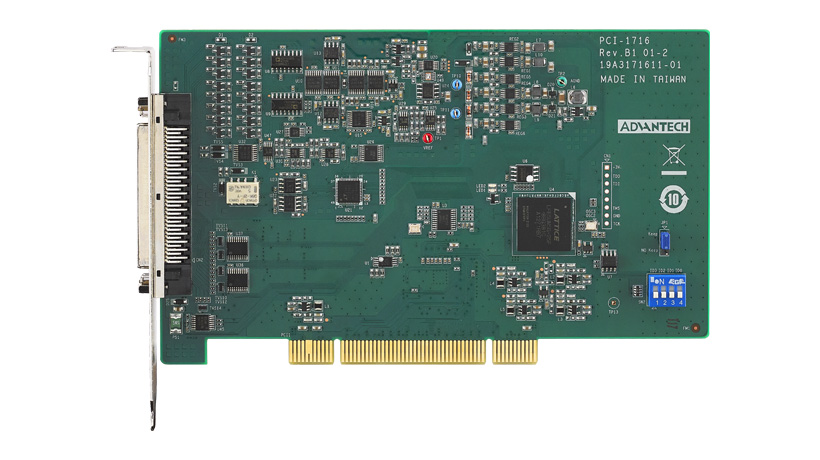

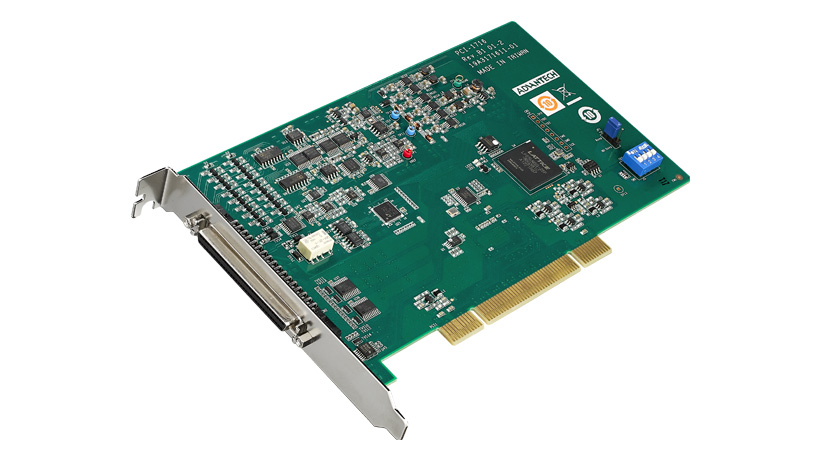

PCI-1716-BE 500k, 16bit High-resolution Multifunction Card

  1. 16 single-ended or 8 differential or a combination of analog inputs
  2. 16-bit A/D converter, with up to 500 kHz sampling rate
  3. FIFO memory (8,192 samples)
  4. 2 analog output channels
  5. 16-ch digital input and 16-ch digital output
  6. Auto-calibration
  7. PCI-Bus mastering data transfer
  8. BoardID™ switch
Certifications
CE CE
Please visit via PC to place order/quote

$686.60

Make an inquiry Add to Quote
Please Select Purchase Qty X
Add to Cart
Please Select Purchase Qty X
Specifications
Category
Attribute
Value
Analog Input
Channels
16
Analog Input
Input Range
±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Analog Input
Resolution(Bits)
16-bit
Analog Input
Sampling Rates(S/s)
500 KS/s (sum)
Analog Output
Channels
2
Analog Output
Output Ranges
0~5 V, 0~10 V, ±5 V, ±10 V
Analog Output
Resolution
16-bit
Analog Output
Update Rate(S/s)
1 MS/s
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Counter/Encoder Input
Channels
1
Counter/Encoder Input
Counting Range
16-bit
Digital Input
Channels
16 (TTL)
Digital Output
Channels
16 (TTL)
