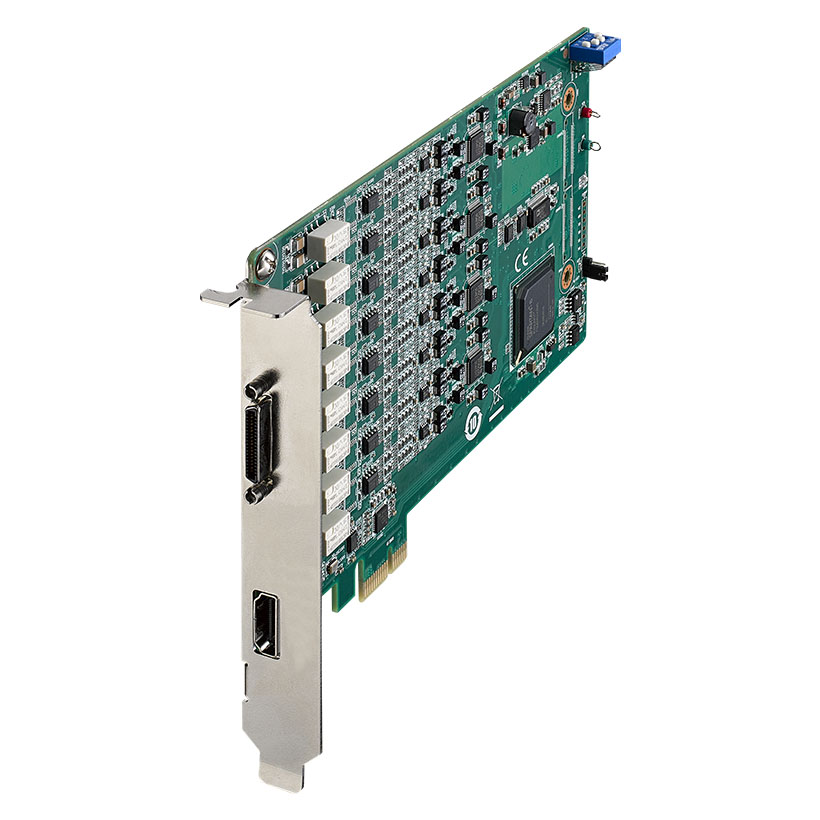

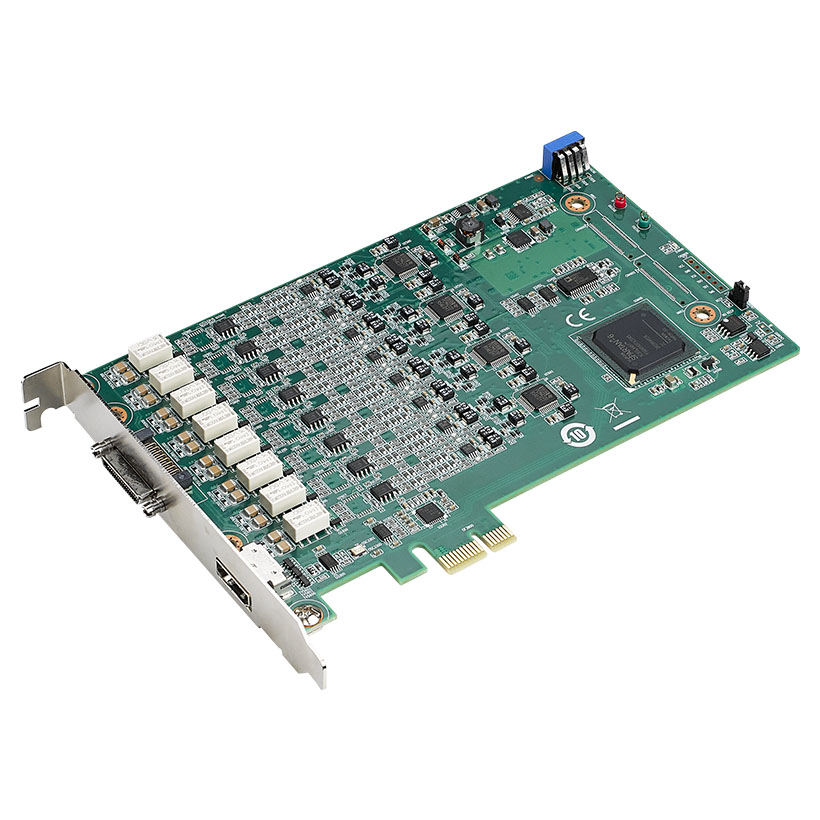

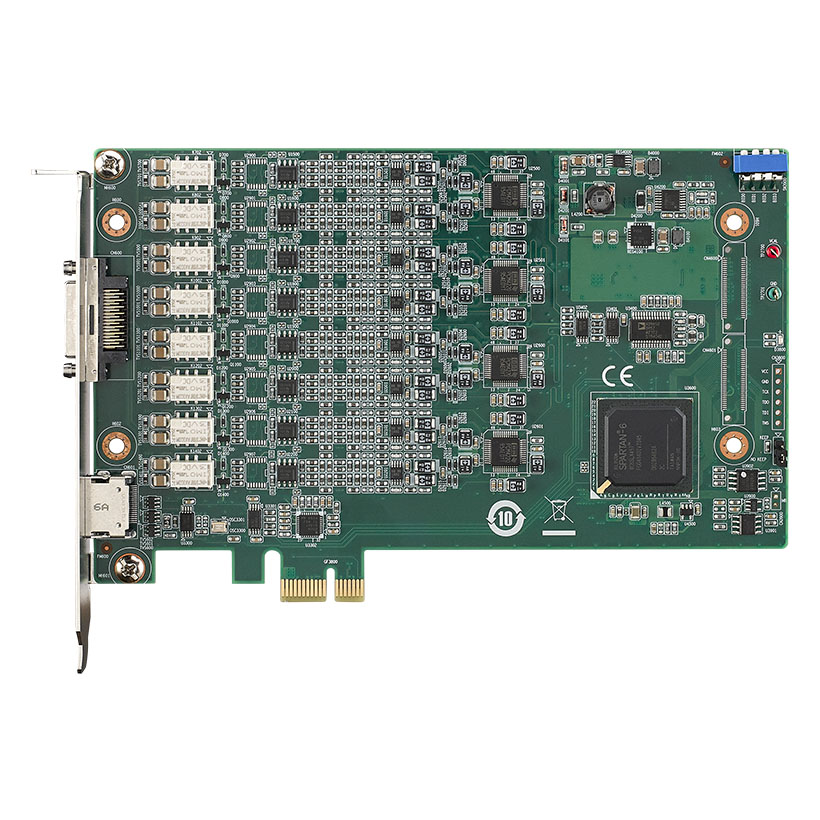

PCIE-1802-AE 216 kS/s, 24-bit, 8/4-ch Dynamic Signal Acquisition PCIE Card

详细规格

Analog Input

• Channels 8
• Input Range ±0.2 V, ±0.5 V, ±1 V, ±2 V, ±5 V, ±10 V
• Resolution(Bits) 24-bit
• Sampling Rates(S/s) 216 KS/s (per channel)

General

• Programming Language C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

Digital Input

• Channels 1 (TTL)

Digital Output

• Channels 2 (TTL)
