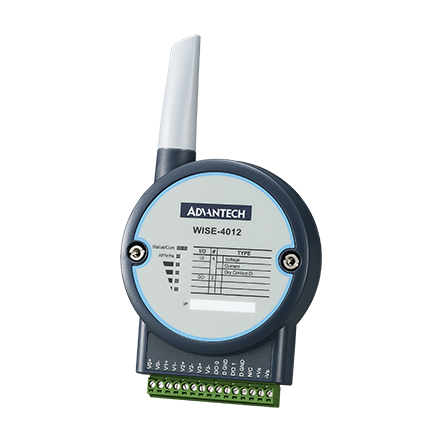

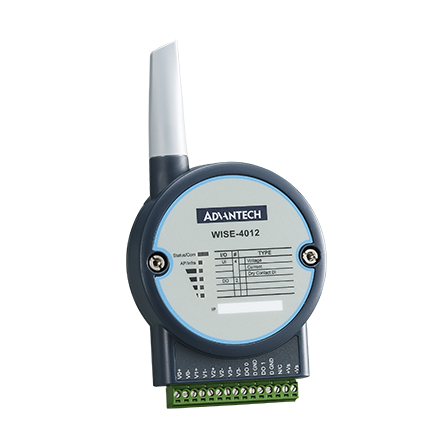

WISE-4012-AE 4-ch UI and 2-ch DO IoT Wireless I/O Module

详细规格

Mechanical

• Enclosure PC
• Mounting DIN-rail, Wall, Stack
• Weight (Net) 0.15 kg
• Dimension (W x H x D) 80 x 148 x 25 mm

Analog Input

• Channels 4
• lnput Type V, A, Dry contact DI
• Input Range ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, 0~150 mV, 0~500 mV, 0~1 V, 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, ±20 mA
• Burn-out Detection Yes
• Isolation Protection 4,200 VDC
• Sampling Rates(S/s) 10/100 Hz (sum)
• Resolution(Bits) 16-bit

General

• Humidity (Storage) 0~95% RH (non-condensing)
• Protocol Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT
• Humidity (Operating) 20~95% RH (non-condensing)
• Connectors 1 x Plug-in screw terminal

Digital Output

• Channels 2 (TTL)
• Isolation Protection 4,200 VDC

Environment

• Relative Humidity 20~95% RH (non-condensing)
• Operating Temperature -25~70 °C (-13~158 °F)
• Storage Temperature -40~85 °C (-40~185 °F)
• Storage Humidity 0~95% RH (non-condensing)

Digital Input

• Input Voltage Dry Contact Logic level 0: open Logic level 1: close to Iso.GND
• Channels 4 (TTL)
• Isolation Protection 4,200 VDC

Hardware

• Watchdog Timer 1.6 s
• LED Indicators Status, Communication (TX/RX), AP/Infra, Signal Strength
• Certification CE, FCC Class A, R&TTE, NCC, SRRC, RoHS, KC
• Power Consumption 2.5 W @ 24 VDC
• Power Input 10~30 VDC

Power Requirements

• Input Voltage 10~30 VDC

Wireless Communication

• Frequency Band IEEE 802.11 b/g/n 2.4 (GHz)
• Standard (Technology) WIFI
