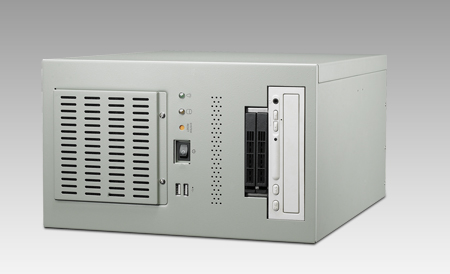

IPC-7132MB-30B AIMB-701VG,I5-2400,8G,1TB,DVD,键鼠

详细规格

Form Factor

• Form Factor ATX

Front I/O Interface

• USB 2.0 10 D-sub openings supporting up to 10 COMs with optinal COM cables

Power Supply

• Power Supply 300W (Single)

Cooling

• System Fan 1 (12 cm , 82 CFM)
• Air Filter Yes

Environment

• Operating Temperature 0~45 °C (32~113 °F)
• Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
• Operating Shock 10 G (with 11 ms duration, half sine wave)
• Operating Humidity 10 ~ 85% @ 40° C, non-condensing
• Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
• Operating Vibration (5 ~ 500 Hz) 1 Grms
• Non-Operating Vibration (5 ~ 500 Hz) 2 G

Mechanical

• Weight (Net) 9.96 kg (21.93 lb)
• Dimension (W x H x D) 200 x 330 x 430 mm (7.9" x 13" x 16.9")

Disk Drive Bay

• 3.5" Front-Accessible 1
• 3.5" Internal 2

Miscellaneous

• LED Indicators Power, HDD
• Control Power Switch, System reset
