2 Year Warranty

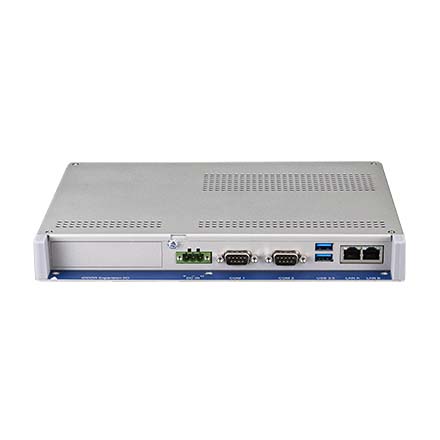

TPC-B200-E12AE 采用Intel®Celeron®J3455处理器的主机模组

  • Intel®Celeron®/ J34553955U处理器,带4GB SODIMM
  • 支持两个独立的视频接口,具有画中画功能和长达100米的信号传输距离(iLINK技术)
  • 支持多种尺寸的前面板模块,提供P-Cap多点触控显示屏幕(12.1英寸带有强大的5线电阻式触摸屏幕)
  • PCIe,mini PCIe,M.2和SSD扩展
  • 下单前货期问题请与在线客服确认

加入购物车 立即购买

详细规格

Hardware

  • CPU Intel® Atom E3940 1.60GHz Quad-Core
  • Memory 1 x SO-DIMM with 4 GB DDR4 2133 MHz
  • Storage 1 x SATA M.2 SSD slot (2242 B-Key), 1 x 2.5" SSD/HDD Bay
  • LAN 2 x 10/100/1000 Mbps
  • I/O 2 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x Line out, 1 x DP
  • Expansion 1 x Full-size mPCIe slot
  • Hardware Security TPM 2.0
  • Certification CB, UL, CE, FCC Class A, CCC, BSMI
  • OS Support Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, Android
  • Power Input 24 VDC ±20%

Environment

  • Vibration Protection 1 Grms
  • Operating Temperature 0~50 °C (32~122 °F)
  • Storage Temperature -40~60°C (-40~140°F)

Mechanical

  • Mounting Panel, Wall, Stand, VESA
  • Weight (Net) 1.8 kg
  • Dimension (W x H x D) 269 x 203 x 30 mm
