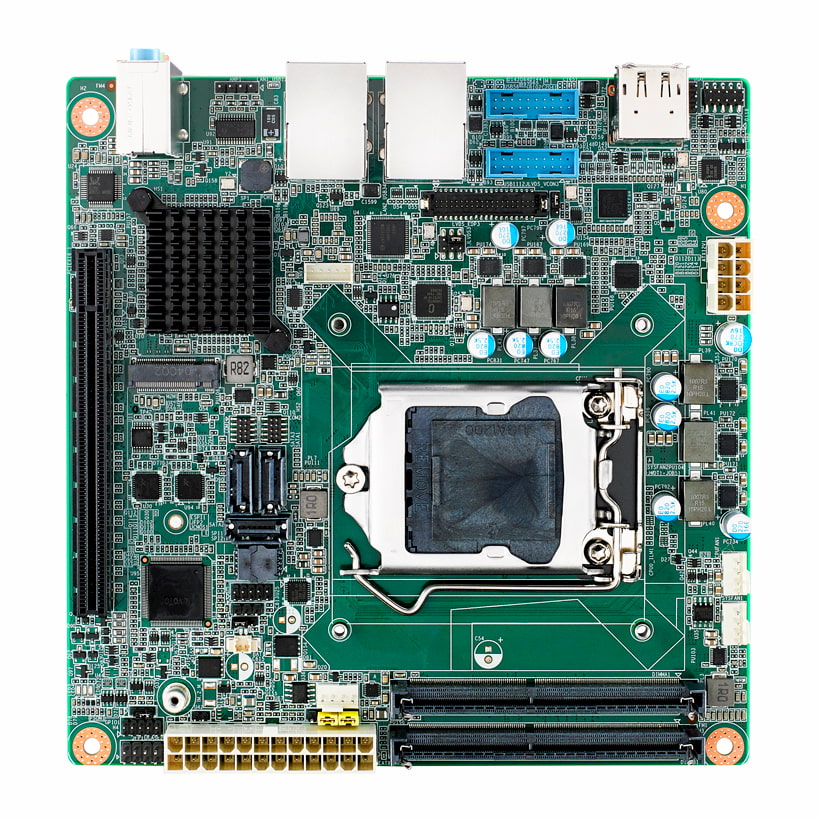

AIMB-277G2-FLA1E miniITX LGA1200 DP/HDMI/VGA/PCIex16/2GbE, RoHS

miniITX LGA1200 DP/HDMI/VGA/PCIex16/2GbE, RoHS
  • miniITX LGA1200 DP/HDMI/VGA/PCIex16/2GbE, RoHS
  • miniITX LGA1200 DP/HDMI/VGA/PCIex16/2GbE, RoHS
  • miniITX LGA1200 DP/HDMI/VGA/PCIex16/2GbE, RoHS
  • miniITX LGA1200 DP/HDMI/VGA/PCIex16/2GbE, RoHS
  • miniITX LGA1200 DP/HDMI/VGA/PCIex16/2GbE, RoHS

  1. Supports 10th Generation Intel® Core™ i processor (LGA1200) with Intel Q470E chipset
  2. Two 260-pin SO-DIMM up to 64GB DDR4 2933 MHz SDRAM
  3. Supports triple display of HDMI 2.0a/DP++/VGA/LVDS( or eDP)
  4. Supports PCIe x16 (Gen 3), 1x M.2 M key + 1x M.2 E key, 4x USB 3.2 Gen2 + 4x USB 3.2 Gen1, and 4x SATA III
  5. Supports Intel vPro, AMT, Software RAID 0,1,5,10, TPM 2.0, 3.2W Amplifier
  6. Supports ATX power
  7. Support SUSI, WISE-DeviceOn and Edge AI Suite.
Certifications
CE CE
Resources
Resources Download
DatasheetDownloadDriverManualExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$372.00

2 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Display
DDI (HDMI/DVI/DisplayPort)
HDMI: 4096x2160@60Hz / DP++: 4096x2304@60Hz
Display
Graphic Engine
Intel HD Graphic
Display
LVDS
Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz
Display
Multiple Display
Triple
Display
VGA
Max. resolution up to 1920 x 1200 @ 60 Hz
Display
Video Interface
HDMI+DP+VGA, HDMI+DP+LVDS (or eDP), HDMI+VGA+LVDS (or eDP), DP+VGA+LVDs (or eDP)
I/O
COM Port
2xRS-232/422/485
I/O
GPIO
8-bit GPIO
I/O
TPM
TPM 2.0
I/O
USB3.0
8
Memory
Max. Capacity
64GB (up to 32GB per SO-DIMM)
Memory
Socket
2 x 260 Pin DDR4 SO-DIMM
Memory
Technology
DDR4 2933MHz SO-SIMM
Processor
BIOS
AMI EFI 256 Mbit
Processor
Chipset
Intel Q470E
Processor
Core Number
10/8/6/4/2
Processor
CPU
Intel® 10th generation Core™ I processor/Pentium®/Celeron® (LGA1200)
Processor
CPU TDP
65W / 35W
Processor
Frequency
2.1~3.7 GHz
Processor
L3 Cache
20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB
Storage
SATA
3 x SATAIII
Operating System
Microsoft Windows
Windows 10 (64-bit)
Operating System
Ubuntu
V
Environment
Non-Operational Temperature
-40~ 85° C
Environment
Operational Temperature
0 ~ 60° C (32 ~ 140° F)
Environment
Vibration Resistance
3.5 Grms (non OP)
Power
Connector
ATX 24-pin + 8-pin ATX12V
Power
Power Type
ATX
Ethernet
Connector
RJ45 x 2
Ethernet
Controller
GbE1: Intel I219LM, GbE2: Intel I211
Ethernet
Speed
10/ 100/ 1000 Mbps
Audio
Audio Interface
HD Audio
Audio
CODEC
Realtek ALC888S
Audio
Connector
3 (Line-in, Line out, Mic-in)
Watchdog Timer
WatchDog Timer
Yes
Certification
EMC
CE/FCC Class B
Expansion
PCI Express x 16
1
Expansion
Slot Type
1 x M.2 M key (Type: 2280), 1 x M.2 E key,(Type: 2230)
Expansion
Slots
1 x M.2 B key + 1 x M.2 E key, 1 x PCIex16
Physical
Construction
with CPU cooler design
Physical
Dimension (mm)
170x 170 mm (without heatsink)
Physical
Weight
1.04 kg (1.72 lb), weight of total package
Others
TPM
TPM 2.0
Recommended Peripherals

Recommended Industrial Grade Peripherals (Optional – Not Required)

Operating System and Software
Part No. Description Unit Price Qty
968MOU204D Ubuntu OS License for Desktop & Server $55.56
