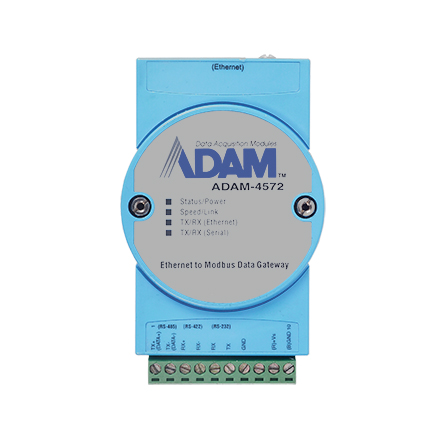

ADAM-4572-CE 1端口Modbus数据网关

详细规格

General

• Power 10-30VDC
• Mounting DIN, Panel
• Temperature 0 to 60C
• Serial Port Count 1
• Serial Type RS-232/422/485
• Ethernet Port Count 1

Power

• Power Consumption 2.5W
• Power Input (DC) 10 ~ 30 VDC
• Power Operating Current 0.3A @ 12 V
• Power Operating Voltage -
• Power Input (AC) -
• Power Input (PoE) -
• Power Input (Battery) -

Protection

• Overload Current -
• Port to Port Isolation -

Serial Communication

• Serial Port Number 1
• RS-232 Yes
• RS-422 Yes
• RS-485 Yes
• Serial Port Connector Type Terminal block
• Serial Transmission Speed -

Software

• Baud Rate 50 ~ 921.6 Kbps
• Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
• Operation Mode Modbus RTU Client/Server, Modbus ASCII Client/Server
• Configuration Windows utility, Web Browser

Environment

• Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
• Operating Humidity 5~95% RH
• Operating Temperature -10 ~ 60°C (14 ~ 140°F)
• Relative Humidity -
• Temperature (Min. Operating) -
• Temperature (Max. Operating) -

Mechanism

• Dimensions (W x H x D) 70 x 112 x 25 mm
• IP Rating IP30
• Weight 125 g
• Mounting (DIN-rail) Yes
• Mounting (Pole Mount) -
• Mounting (Rack Mount) -
• Mounting (Wall) Yes
• Mounting (Stack) -
• Enclosure (Plastic) Yes
• Mounting (Panel) -

Ethernet Communication

• RJ-45 Transmission Speed 10/100 Mbps
• RJ-45 Port Number 1
• RJ-45 Port Connector Type RJ-45
• Ethernet Standard IEEE 802.3 , 802.3u
• RJ-45 Transmission Distance -
• Fiber Transmission Distance -
• Fiber Port Number -
• Fiber Transmission Speed -
• Fiber Port Optical Mode -
• Fiber Port Supports VDSL -
• RJ-45/SFP Combo Port Number -
• RJ-45/SFP Combo Port Speed -

Certification

• EMC CE, FCC
• EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
• EMS EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
• Freefall NA

MTBF

• Time -
• Method -

Warranty

• Warranty Period 5 years

PoE Information

• PoE Budget -
• PoE Port Number -
• PoE Output -

Protocol Support

• Modbus TCP Yes
• Modbus RTU Yes
• PROFINET -
• EtherNet/IP -
• EtherCAT -
• OPC UA -
• BACnet -
• Ethernet Yes
• Modbus ASCII Yes
