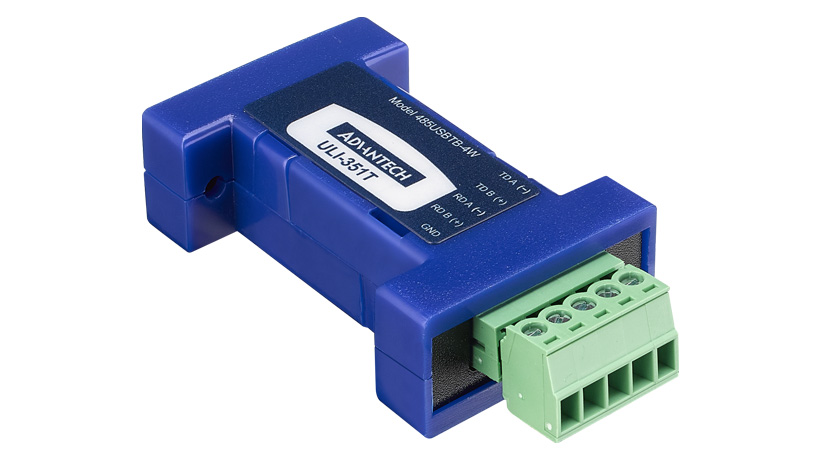

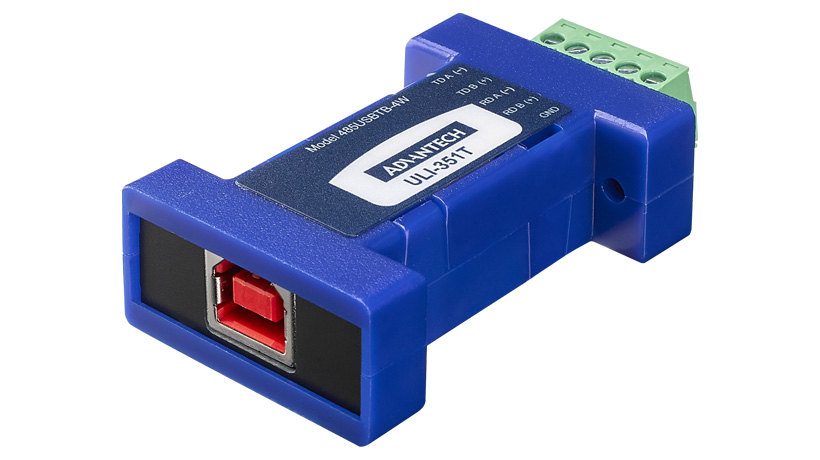

BB-485USBTB-4W-A ULI-351T，USB 至 RS-485 4线 (端子台) 转换器

详细规格

Power

• Power Input (USB) Port-Powered from USB host (5 VDC)

Serial Communication

• Serial Port Number 1
• Serial Standard RS-485
• Serial Port Connector Type Terminal block
• Maximum Serial Transmission Speed 921.6 Kbps

Environment

• Operating Temperature 0 ~ 70°C (32 ~ 158°F)

Accessory General

• Mounting Inline

Upstream USB Port

• Standard USB 2.0
• Maximum Transfer Rate Full-Speed (12 Mbps)
• Connector Type Type B (Female) High Retention
• Port Number 1
