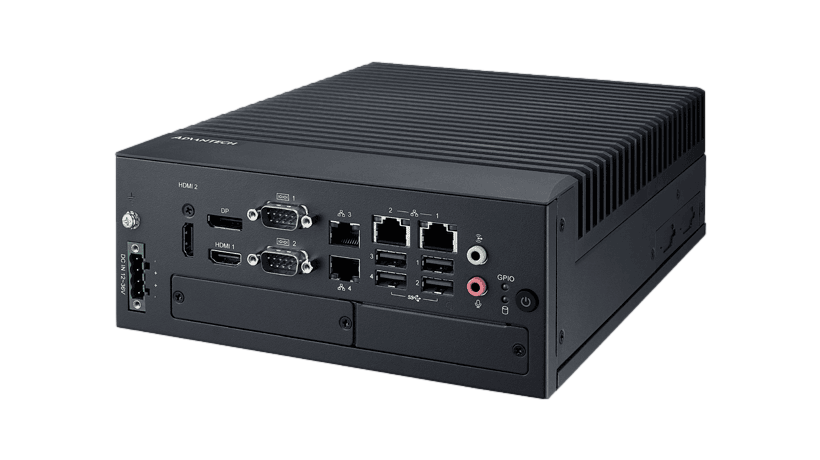

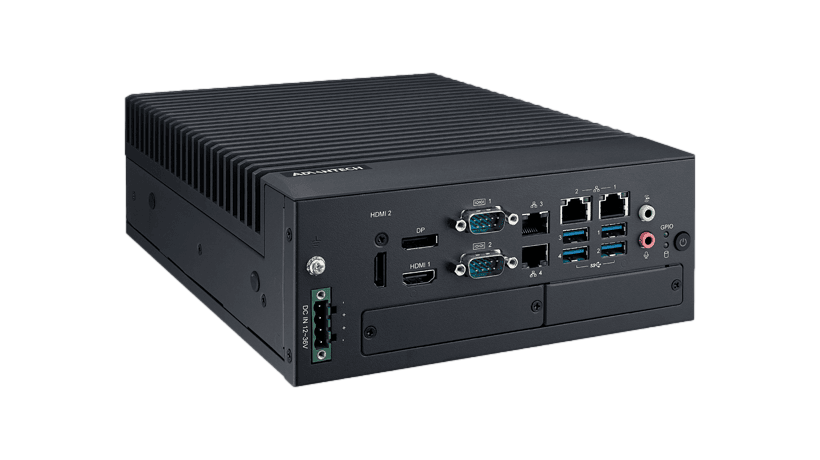

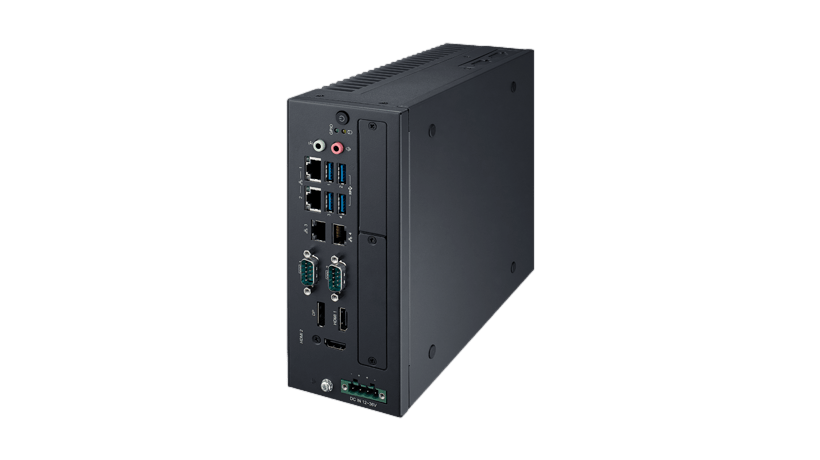

MIC-780W-00A1 Intel^® Core™ Ultra 5/7/9 处理器 (第2代)紧凑型无风扇系统

详细规格

Processor System

• CPU Intel® Core™ Ultra processors (Series 2)
• TDP Up to 65 W
• Core Number Up to 24
• L3 Cache Up to 36 MB
• Chipset Intel® W880
• Socket Q'ty 1 x LGA1851

Memory

• Type and Speed Dual-channel DDR5 6400 MHz
• Slots 2 x 262-pin DDR5 SO-DIMM
• System Max Capacity 128 GB
• Per Slot Max Capacity 64 GB

LAN

• Controller LAN1: Intel® I219-LM, LAN2: Intel® I210-IT
• Speed 10/100/1000 Mbps
• Connector 2 x RJ45

WatchDog Timer

• Output System Reset
• Interval Programmable 1 ~ 255 sec/min

Storage

• HDD 2 x 2.5" HDD/SSD (2 x 3.5" HDD by i-Module)
• M.2 1 x NVMe M.2 2280 (PCIe Gen4 x4), M-Key

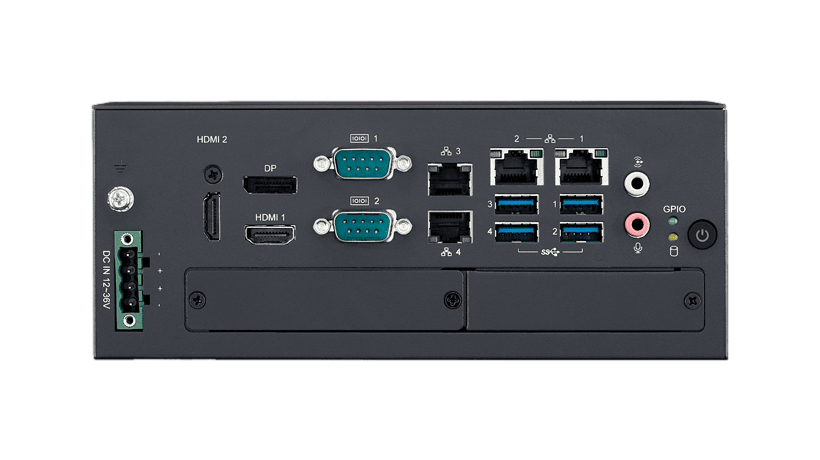

Front Panel & I/O

• Display 1 x DP, 2 x HDMI
• LAN 2
• COM 2 x DB9, RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional 98R17500601)
• Audio 2 (1 x Line-out, 1 x Mic-in)
• USB 2 x USB 3.2 (Gen2), 2 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal)

Power Supplies

• Type ATX, AT
• Input Voltage 12 ~ 36 VDC

Environment

• Operating Temperature -20~50 °C with 0.7 m/s air flow
• Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F)
• Operating Shock With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration
• Operating Humidity 95% @ 40 °C (Non-condensing)

Physical Characteristics

• Weight (Net) 3.8 kg (8.4 lb)
• Dimension (W x H x D) 195 x 80 x 240 mm
• Mounting Desktop, Wall mount, Din rail mount

Certification

• EMC, Safety CE/FCC Class A, CCC, BSMI, UL/CB

Graphics

• Controller Intel Xe LPG Graphics

Expansion

• PCIe/PCI Module Supported via MIC-78 series i-Module
• Mini PCIe/mSATA 1
