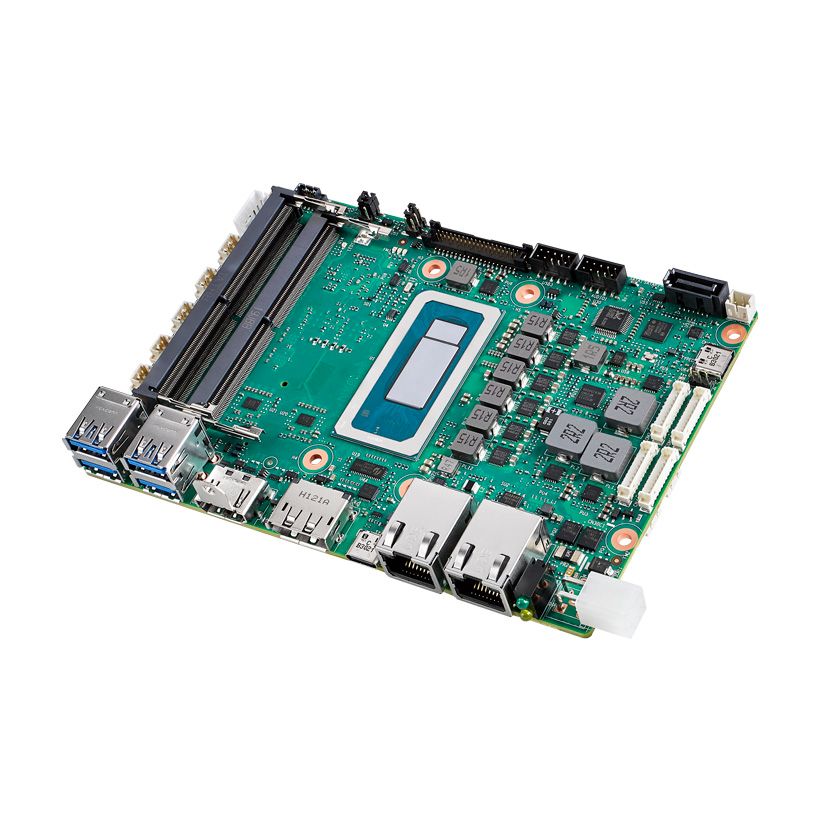

MIO-5377C7P-Q5A1 研华 3.5" 嵌入式MIO-5377单板电脑 第12代酷睿处理器

详细规格

Memory

• Technology DDR5 4800 MHz
• Max. Capacity 64 GB
• Socket 2 x 262 pin DDR5 SO-DIMM

Processor

• CPU i7-1270PE, i7-1265UE, i5-1245UE, 13-1215UE, Celeron 7305E, i7-1370PE, i7-1365UE, i5-1345UE, i3-1315UE, i7-1365URE
• BIOS AMI EFI 256 Mbit
• CPU TDP Up to 28W
• Max Turbo Frequency 4.5 GHz

Operating System

• Windows 10 V
• Ubuntu V

Environment

• Operational Temperature 0 ~ 60° C (32 ~ 140° F)
• Vibration Resistance 3.5 Grm (Non-Operation Mode)
• Humidity 40° C @ 95% RH Non-Condensing

Power

• Power Supply Voltage Vin: 12-24V
• Connector Default ATX 2x2P, DC jack supported by request

Graphics

• Controller Integrated Intel Iris Xe Graphics
• Max. Frequency 1.35GHz

Expansion

• M.2 1 x E-Key (Type: 2230), 1 x B-Key (Type: 3042/ 3052), 1 x M-Key (Type: 2280)

Certifications

• EMC CE, FCC

Rear I/O

• Ethernet 2
• HDMI / DisplayPort* 1/1
• USB 4 x USB 3.2 Gen 2x1 (10Gbps)
• USB Type-C 1 x USB3.2 Gen. 2x2 20Gbps
