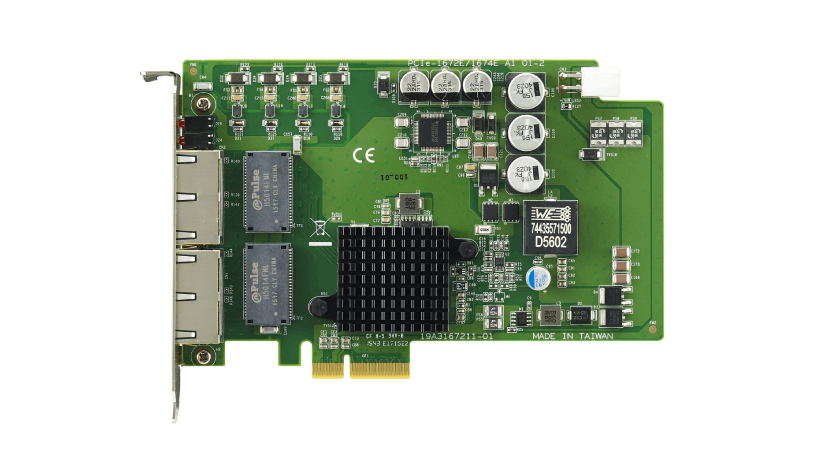

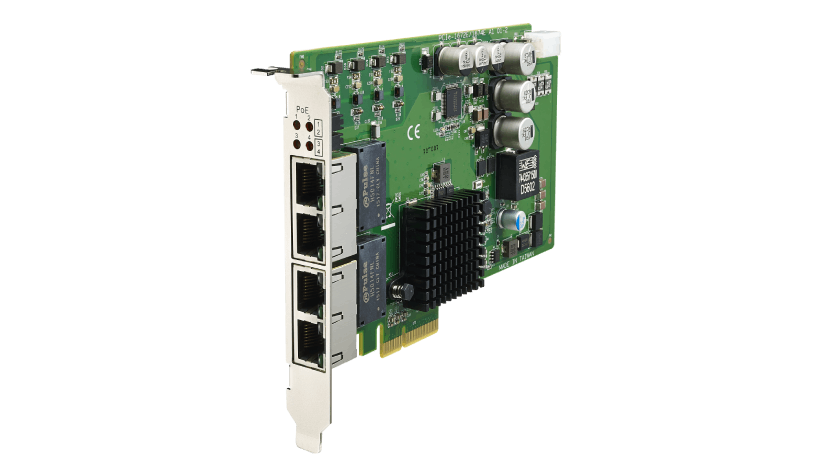

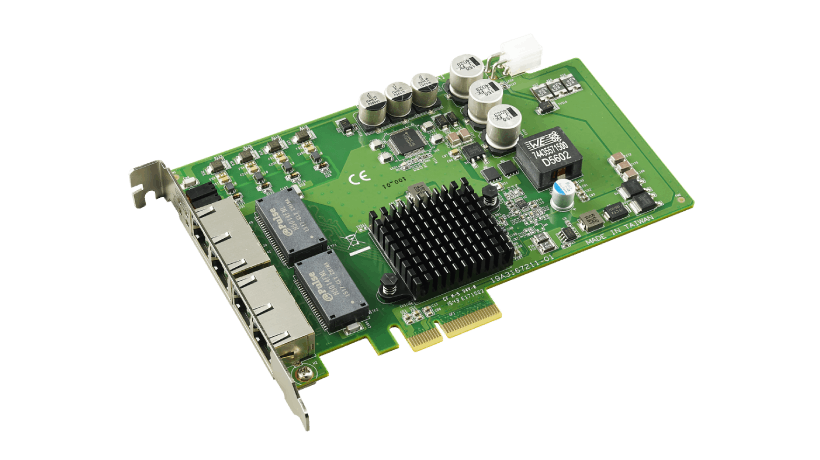

PCIE视觉卡 4端口PCI Express PoE+GigE视觉帧抓取

详细规格

Environment

• Operating Temperature 0~50 °C (32~122 °F)
• Storage Temperature -20~80 °C (-4~176 °F)

Power Requirements

• Input Voltage 12 VDC
• Output PoE Power 48 VDC PoE Power output, total Max. 18W (total Max. 60W with AT/ATX System power input)

Video Inputs and Outputs

• Channels (Max.) 4
• Host Interface PCIe 2.0 x4

Environment

• Operating Temperature 0 to 50°C (32 to 122°F)
• Operating Humidity 95% @ 40 °C (non-condensing)

Mechanical

• Form Factor PCIe (HL/FH)

Compatibility

• OS Version Windows, Linux

Certification

• EMC, Safety CE/FCC

Power

• Input 12 V DC
