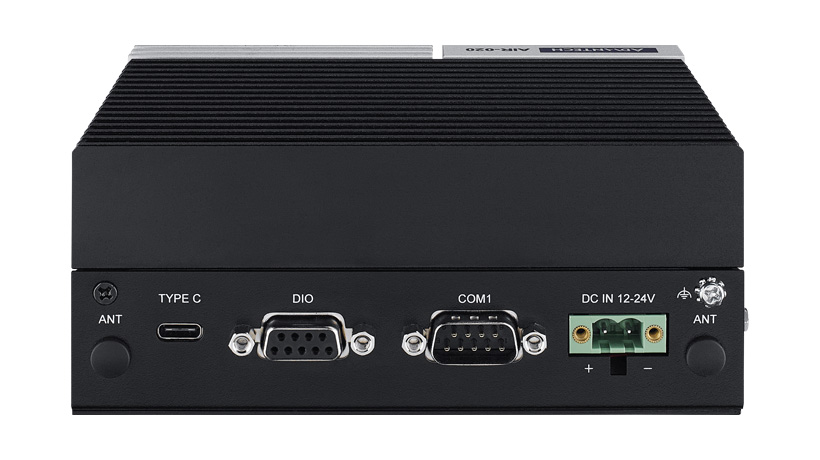

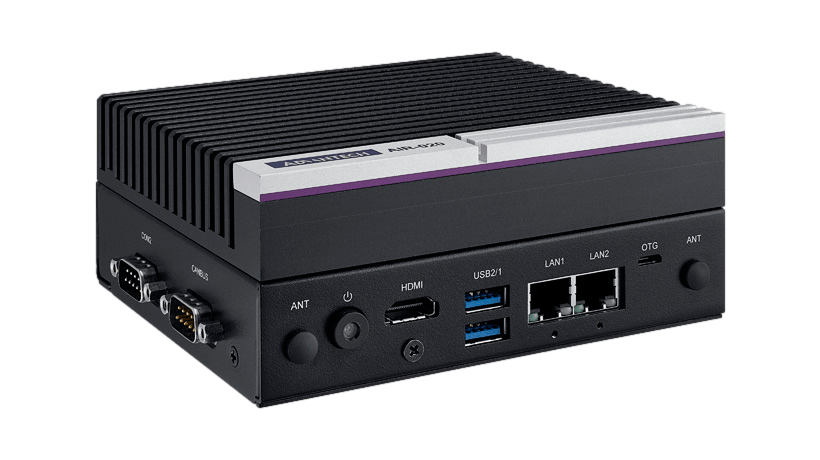

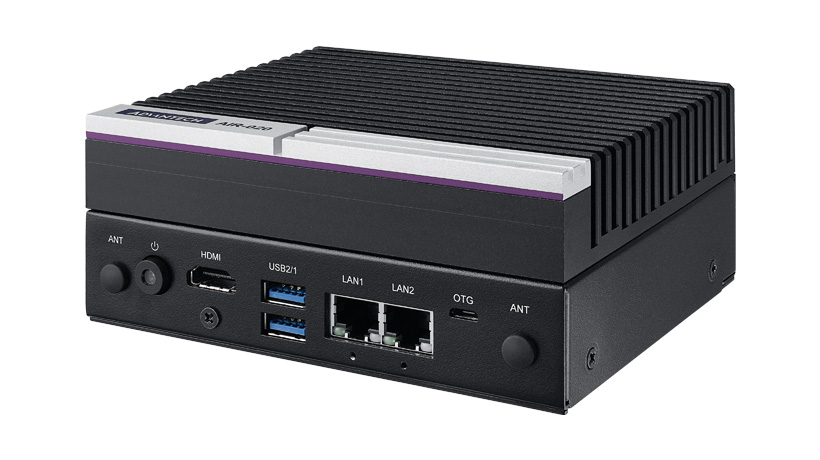

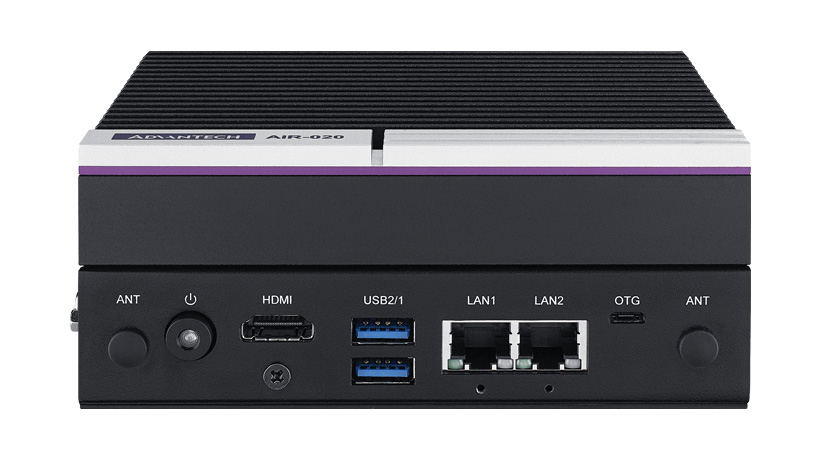

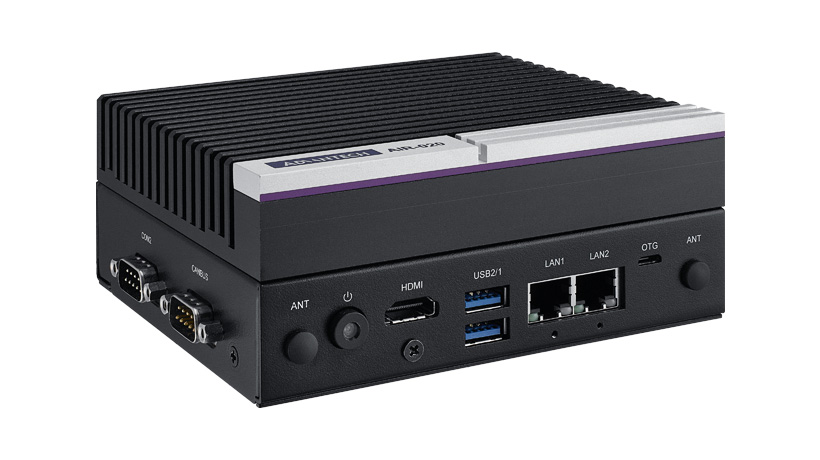

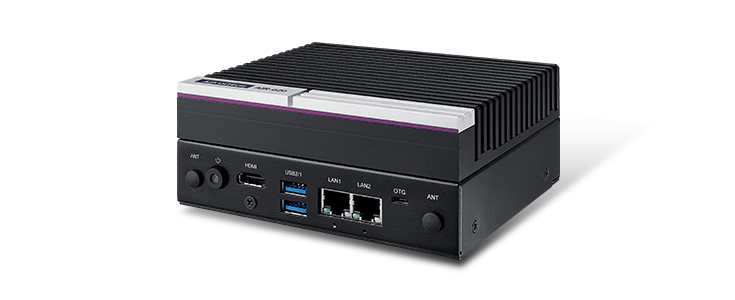

AIR-020R-S7A1U 研华AIR-020R 基于NVIDIA Jetson Orin Nano的边缘AI推理系统

产品亮点

详细规格

Display

• Resolution 3840 x 2160 @ 30Hz
• HDMI 1

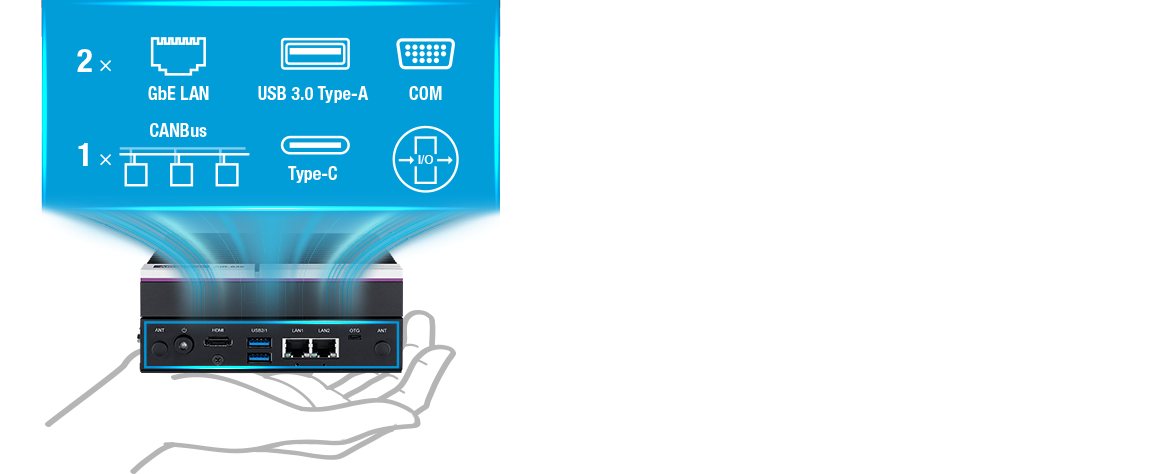

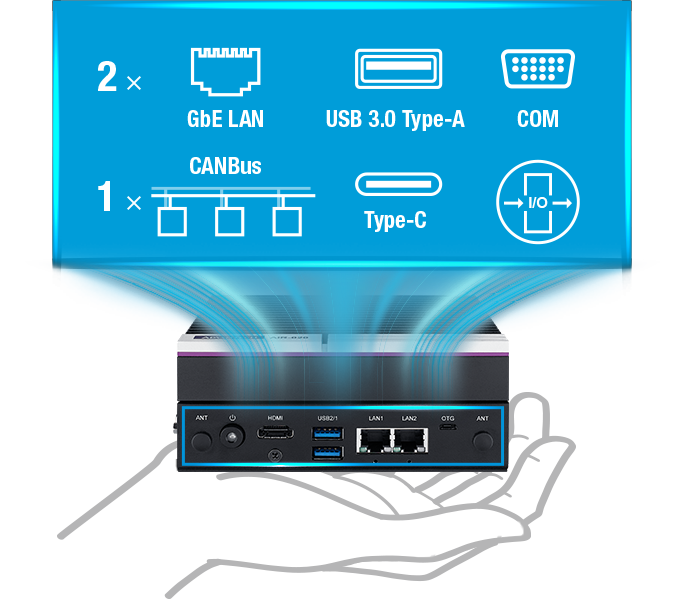

I/O

• USB 2 x USB 3.2 Type A, 1 x USB 3.2 Type C
• COM Port 2xRS-232/422/485
• Digital I/O 8bit
• CANBus 1 x DB9

Processor

• CPU NVIDIA Jetson Orin Nano-8GB

Storage

• M.2 1 x M.2 2280 (M Key), 128GB built-in

Environment

• Operational Temperature With extended temp peripherals: -10~50°C with 0.7m/s air flow
• Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Power

• Power Supply Voltage 12VDC~24VDC
• Power Adaptor AC to DC, 90W (Optional)

Ethernet

• Connector 2 x RJ-45
• Speed 2 x 10/100/1000Mbps

Environment

• Relative Humidity 95% @ 40° C (non-condensing), Operating

Expansion

• Mini PCIe 1 x Full-size mPCIe with nano SIM holder

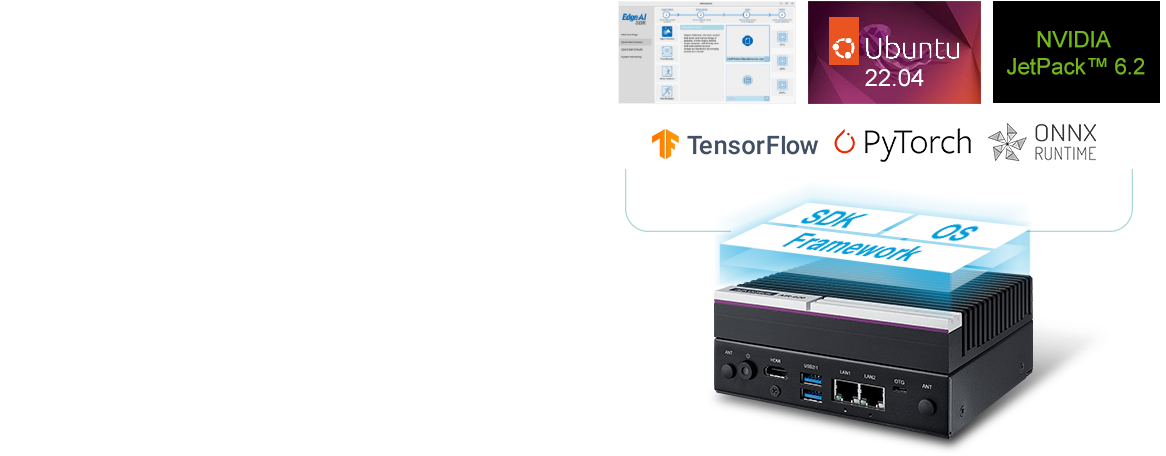

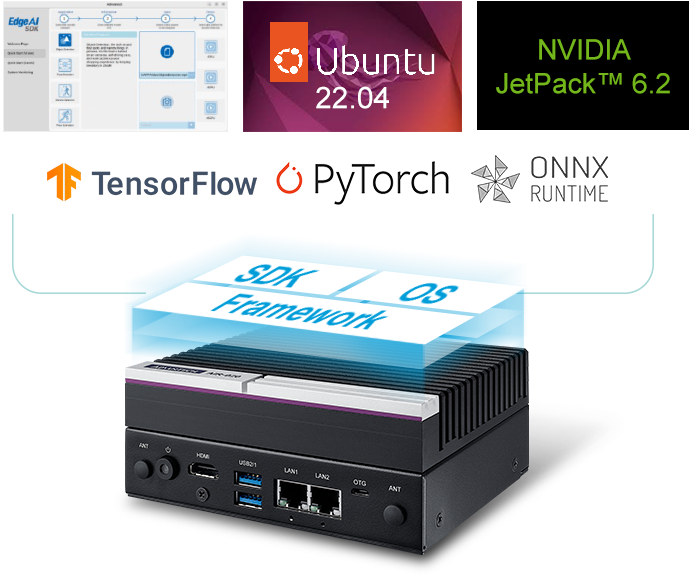

Software Support

• Linux Ubuntu 22.04

Regulation

• EMC CE/FCC Class B, CCC, BSMI
• Safety CB, UL, CCC, BSMI
