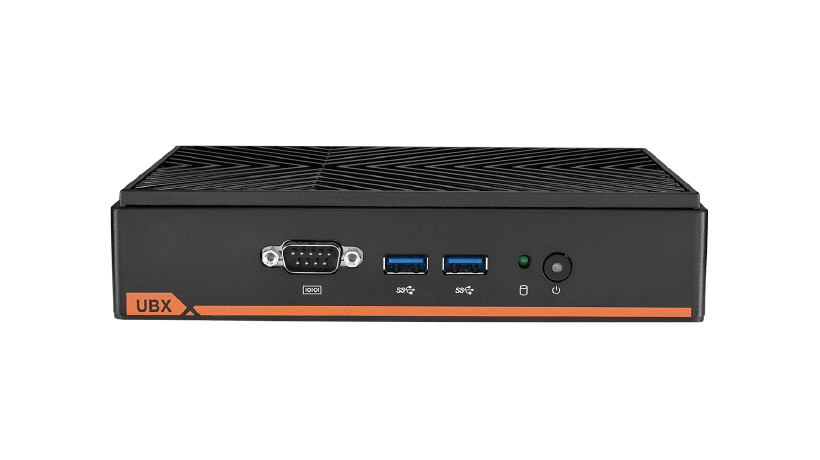

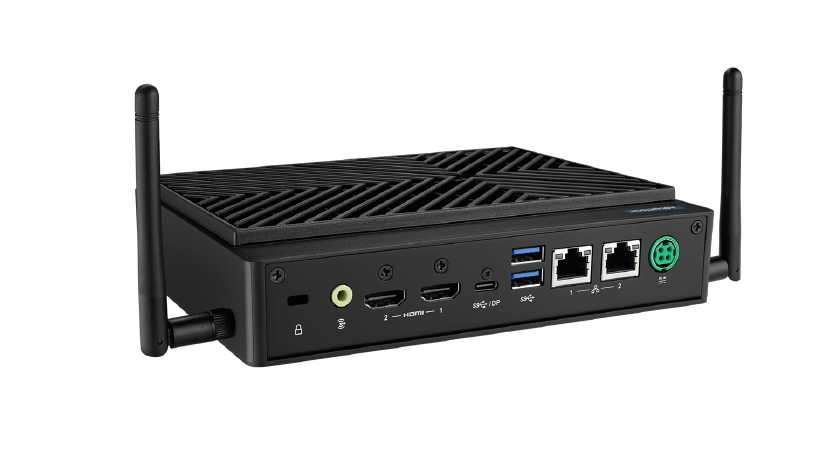

UBX-110K-BN100 4K UHD门店网关，配备 Intel^® N97 or Core™ i3-N305 处理器

详细规格

Processor System

• OS Win 10 IoT Enterprise, Win 11 IoT Enterprise, Android 14, Ubuntu 22.04
• CPU Intel® N97

Power Supply

• Operating Temperature 0~ 45 °C

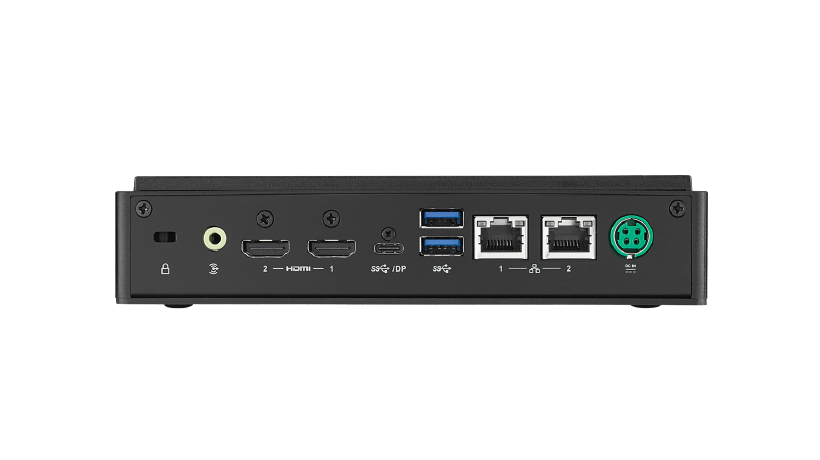

I/O Interface

• USB Port Front: USB 3.2 Gen 1 Type A X 2; Rear: USB-C X 1, USB 3.2 Gen 1 Type A X 2
• Output 1 x USB-C, 2 x HDMI2.1
• Audio 1 x Line-out
• Ethernet 2 x RJ-45
• COM 1 x DB9
• Power Jack 1 x DC 12V

Image Resolution

• Triple Displays 4K UHD (4320 x 2160 @ 60Hz)
• Dual Displays 4K UHD (4320 x 2160 @ 60Hz)

Memory

• Max. Capacity 16 GB
• Technology DDR5-4800

Expansion

• WiFi, Bluetooth 1 x M.2 2230
• Storage 2 x M.2 2280

Mounting

• Mounting VESA, Desk, Wall
