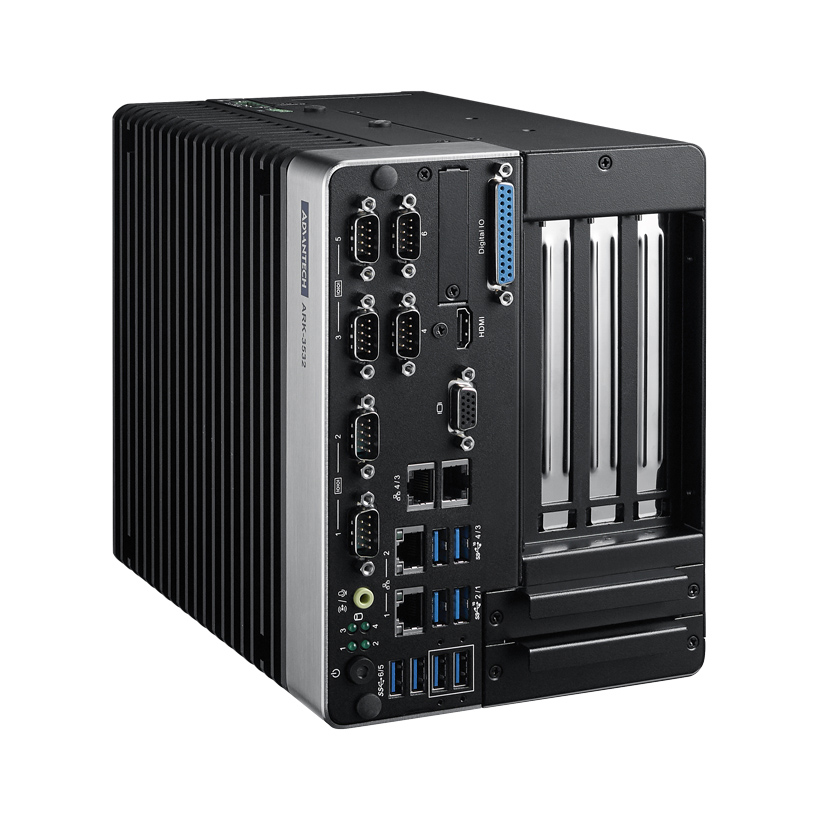

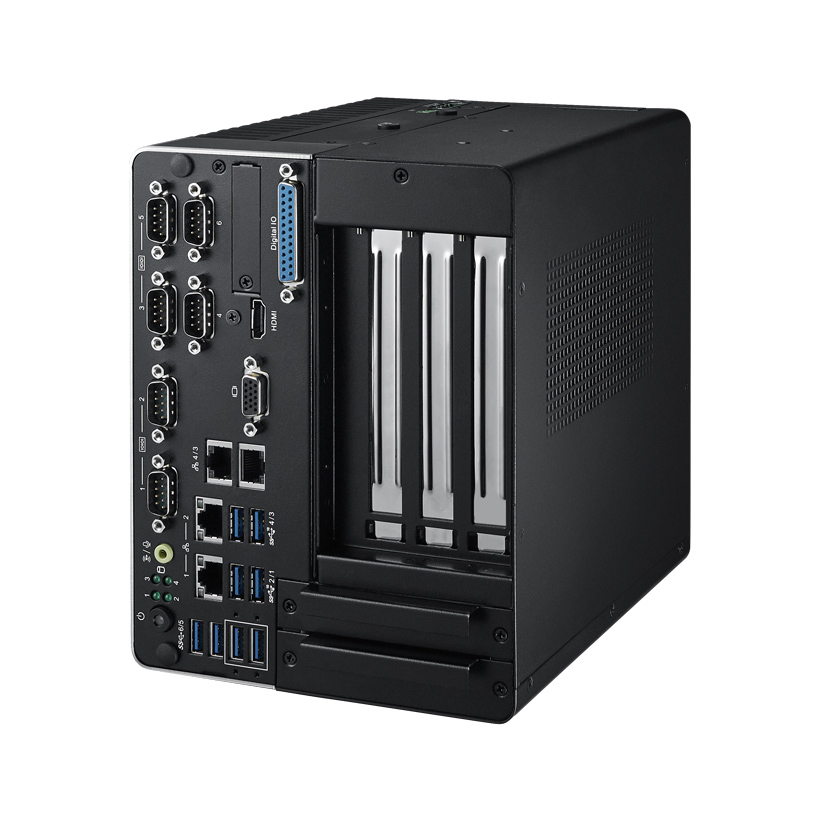

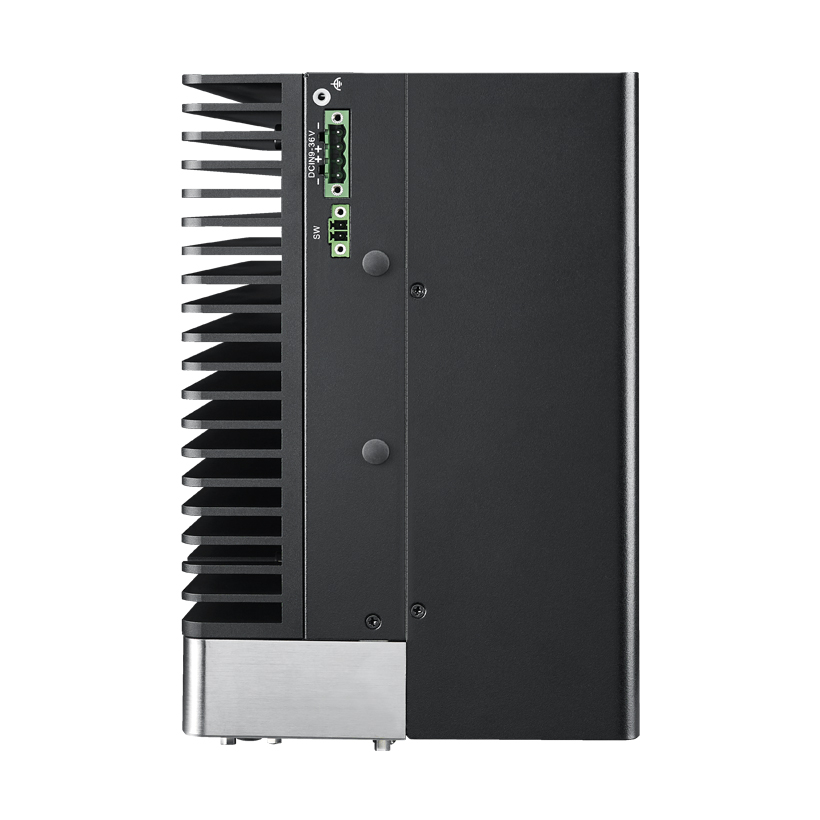

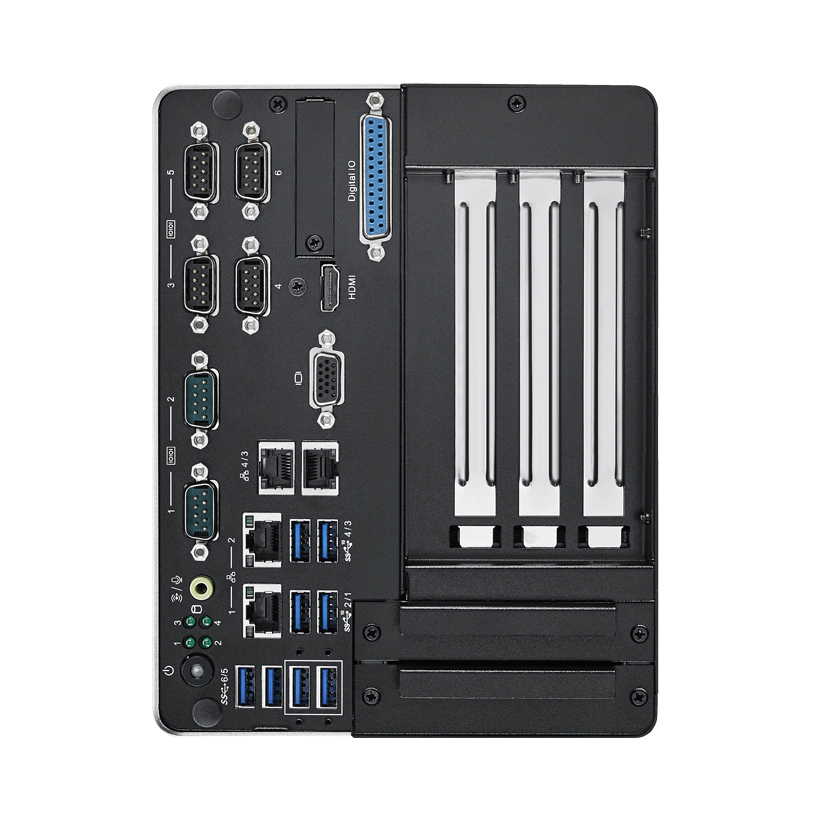

ARK-3532B整机配置 Intel ® 10th Gen Xeon® W / Core™ i LGA1200 无风扇工控机

  • i5-10500E
  • 8G内存
  • 500G 硬盘
  • 含电源线和配置器
  • 预装正版WIN 10操作系统
产品规格 驱动 产品使用手册产品3D 模型 下载

RMB 9,500
加入购物车 立即购买
ARK-3532B-00A1
ARK-3532B-00A1
ARK-3532B-00A1
ARK-3532B-00A1
prev
next
  • ARK-3532B整机配置
  • ARK-3532B整机配置
  • ARK-3532B整机配置
  • ARK-3532B整机配置
加入购物车

产品已加入购物车

> 前往结帐

详细规格

  • Technology DDR4 2933MHz SO-SIMM
  • Max. Capacity 64 GB
  • Socket 2 x 260 pin SO-DIMM
  • ECC Support Yes(by processor)

  • Chipset W480E
  • CPU Intel Xeon W-1290TE/Intel Core i9 10900E/Intel Core i7 10700E/Intel Core i5 10500E/Intel Core i3 10100E/Intel Celeron G5900E
  • L3 Cache 20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB
  • Core Number 10/ 10/ 8/ 6/ 4/ 2

  • mSATA 1 x mSATA socket (Share with Mini PCIe)
  • 2.5" HDD/SSD 2 x 2.5" SATAIII Drive bay (compatible with 15mm height)

  • Operational Temperature With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.7m/s air flow

  • Power Type AT/ATX
  • Input Voltage 9 ~ 36 VDC

  • Controller 4
  • LAN1 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
  • LAN2 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN
  • LAN3/LAN4 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan

  • Chipset Intel UHD Graphics 630
  • Graphic Engine Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
  • HDMI 1
  • VGA 1

  • Main System Realtek ALC888S, High Definition Audio, Line-out, Mic-in

  • Serial Port 2 x RS232, 4 x RS232/422/485
  • USB Interface 4 x USB 3.2 (10Gbs),2 x USB 3.0, 2 x Independent USB 3.0
  • GPIO 16-bit
  • Serial 6
  • USB3.0 8

  • Temperature (Storage) - 40 ~ 85° C (-40 ~185° F)
  • Relative Humidity 95% @ 40° C (non-condensing)
  • Vibration During Operation With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock During Operation With CompactFlash disk: 30Grms, IEC 60068-2-27 , half sine, 11 ms duration

  • EMC CE/FCC Class B, CCC, BSMI
  • Safety Certifications CB, UL, CCC, BSMI

  • PCI Express x 16 PCI-E x16 graphics card slot
  • PCI Express x 4 1
  • Mini PCIe #1 1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1
  • Mini PCI Express 1
  • M.2 1

  • Typical 30W
  • Max. 64.8W

  • Watchdog timer 255 levels timer interval, setup by software

  • Microsoft Windows Windows 10/11 IoT Enterprise LTSC
  • Linux Support by project
