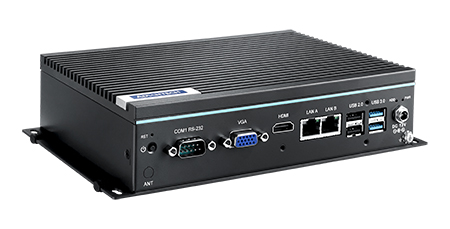

UNO-247-J1N1AE 搭载Intel^® Celeron^® J3455 物联网边缘计算平台

详细规格

Hardware

• CPU Intel® Celeron® J3455 1.5GHz
• Memory 1 x DDR3L SO-DIMM Slot
• Storage 1 x mSATA, 1 x 2.5" SSD/HDD bay
• Watchdog Timer 1~255 s
• BIOS AMI EFI 64 Mbit Flash BIOS
• Graphics Engine Intel® HD Graphics
• Ethernet Realtek® RTL8111G-CG GbE
• LED Indicators PWR
• Certification CB, UL, CE, FCC, CCC, BSMI
• Power Consumption 17 W @ 12 VDC
• OS Support Microsoft® Windows 10 2019 LTSC, Linux
• Power Input 12 VDC

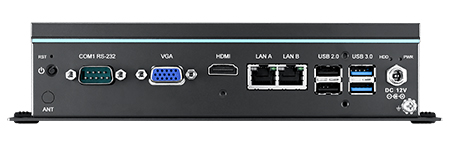

I/O Interface

• Serial Ports 4 x RS-232, 2 x RS-485
• Audio Line-Out
• Expansion 1 x Full-size mPCIe Slot, 1 x M.2 E key 2230, 1 x Micro SIM Card Slot
• USB Ports 2 x USB 3.0, 2 x USB 2.0
• Displays 1 x HDMI, 1 x VGA
• Power Connector 1 x DC Jack
• LAN Ports 2 x 10/100/1000 Mbps

Environment

• Relative Humidity 10~95% RH (non-condensing)
• Ingress Protection IP40
• Vibration Protection 3 Grms, random
• Shock Protection 50 G, half sine
• Operating Temperature -20~60 °C (-4~140 °F)
• Storage Temperature -40~85 °C (-40~185 °F)

Mechanical

• Enclosure Aluminum housing
• Mounting Stand, Din-rail
• Weight (Net) 1.0 kg (2.2 lb)
• Dimension (W x H x D) 200 x 140 x 50 mm
