IDP31-101WP50HIA1
IDP31-101WP50HIA1
IDP31-101WP50HIA1
IDP31-101WP50HIA1
IDP31-101WP50HIA1
All Images
2 Year Warranty

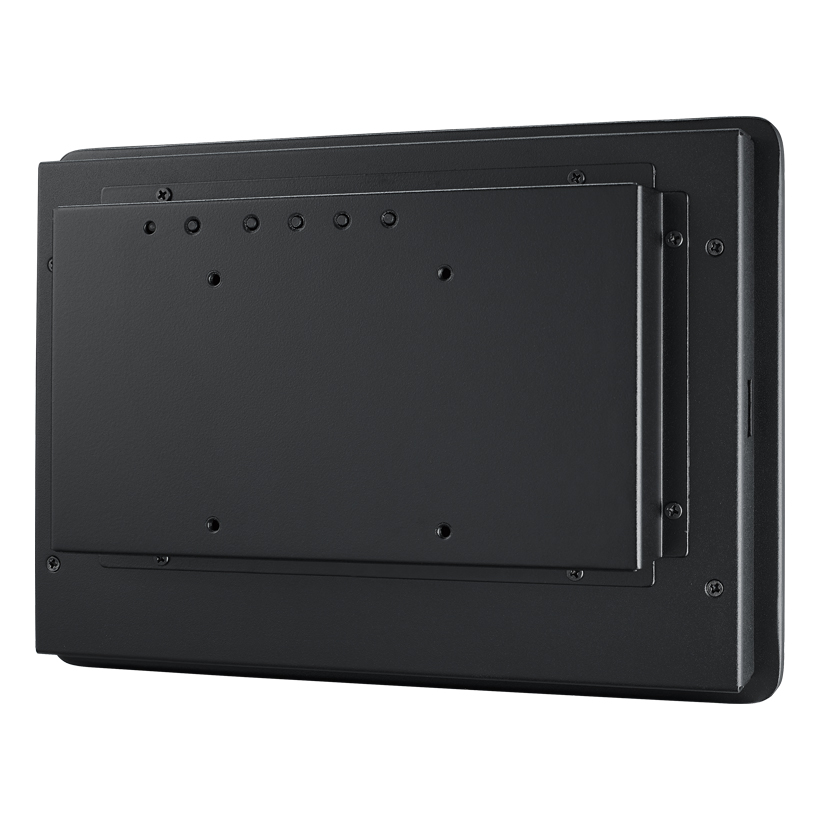

IDP31-101WP50HIA1 研华10.1" 无边框平面触摸玻璃面板工业显示器 超薄

  • HDMI Interface
  • Multi-touch PCT touch overlay
  • Thin profile, enclosure – no need for additional enclosures or metalwork
  • Wide view-angle 89°/89°/89°/89° for portrait and landscape mode
  • True flat surface – contemporary Proflat style
  • Wide operating temperature
  • 10.1" 1280x800 LCD with Multi-touch PCT touch overlay
  • IP67 rated front panel design
  • 下单前货期问题请与在线客服确认
产品规格 产品使用手册 产品3D 模型 下载

加入购物车 立即购买
IDP31-101WP50HIA1
IDP31-101WP50HIA1
IDP31-101WP50HIA1
IDP31-101WP50HIA1
加入购物车

产品已加入购物车

> 前往结帐

详细规格

Environment

  • Operational Temperature -20 ~ 60° C
  • Storage Temperature -30 ~ 70° C
  • Humidity 10 ~ 90% @ 40° C, non-condensing

LCD Display

  • Size 10.1"
  • Resolution 1280x800(WXGA)
  • Colors 16.2M
  • Viewing Angle (H/V°) 170/170
  • Backlight Life (hrs) 50,000
  • Contrast Ratio 800 : 1
  • Brightness 500 nits
  • Touch Screen Projective Capacitive Touch
  • Response Time (ms) 11
  • Backlight Type LED
  • Power Consumption 8W

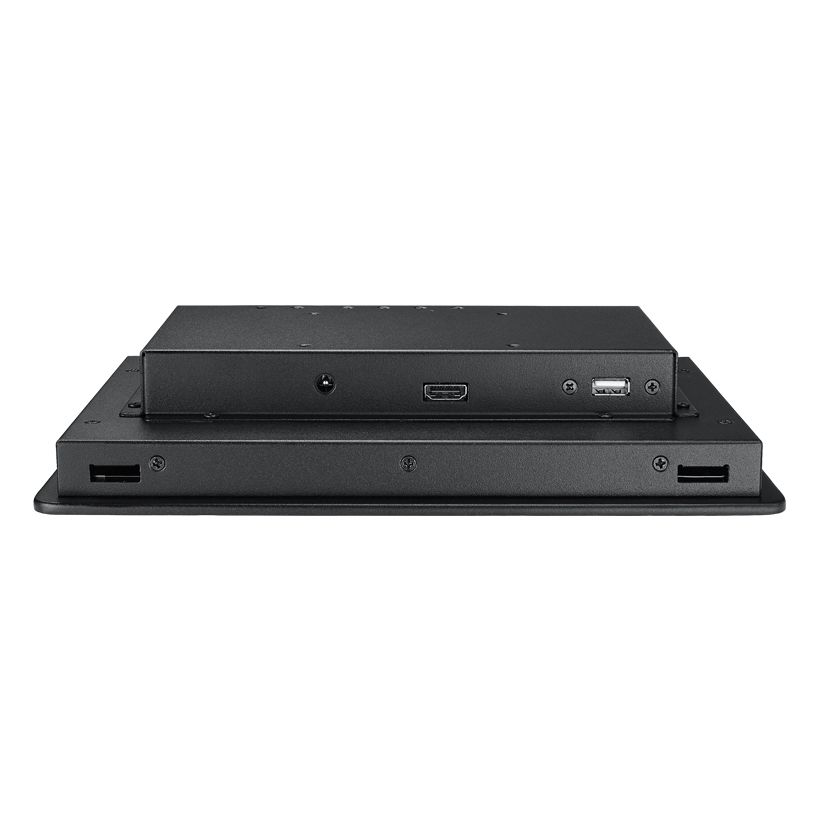

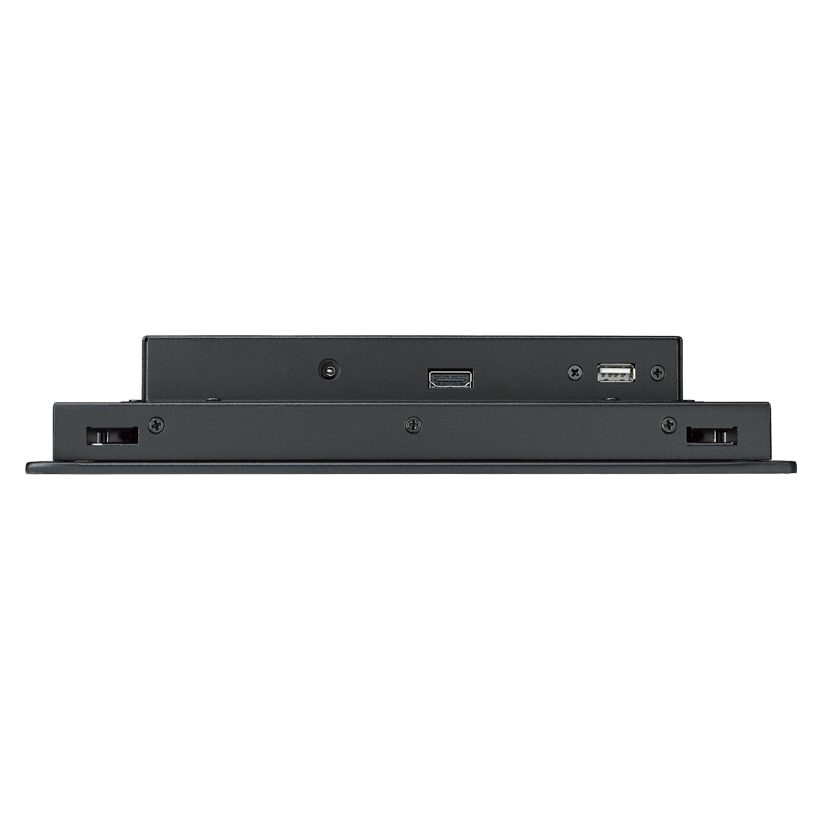

  • Signal Interface 1xHDMI, 1x12V DC Jack, 1xUSB
  • Weight 1.6kg

Touchscreen

  • Surface Hardness 7H
  • Transparency 90%
