2 Year Warranty

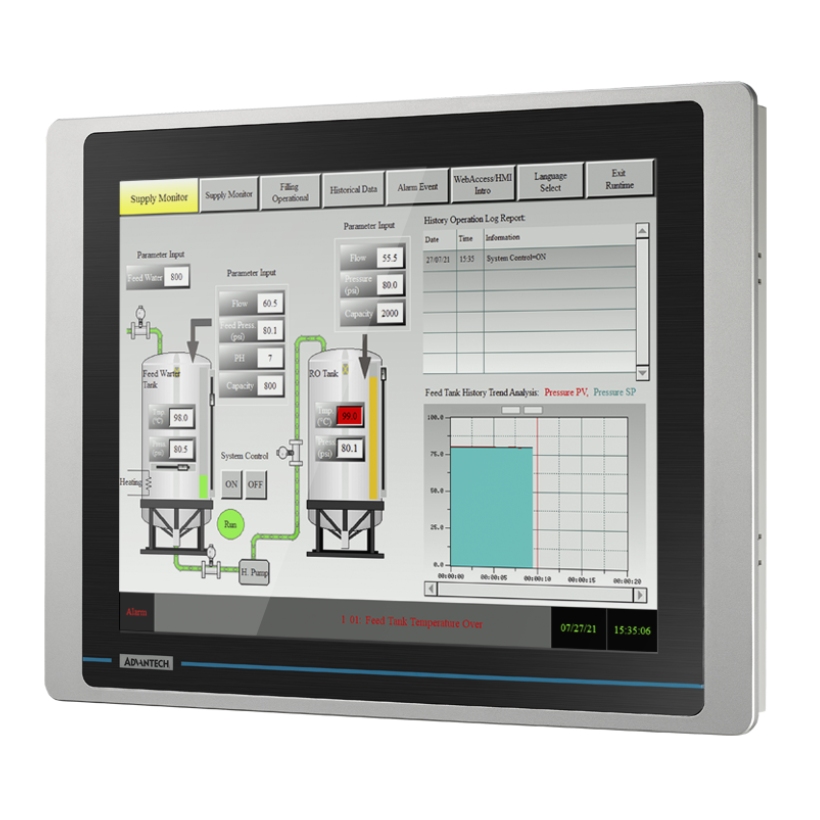

WOP-215K-NAE 15" XGA, 64MB, 128MB(NAND),Serialx3,Ethernet

  • ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
  • Supports over 500+ PLC industrial communication protocols
  • Backup memory 128KB for retaining critical data or parameter
  • Supports the HMINavi Designer development tool free on Windows 10
  • Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
  • No limitation on the internal I/Os points used for variety application
  • Easy to switch one application to different LCD sizes in seconds
  • Supports operation in both landscape and portrait mode
  • Panel mount design ensures easy installation and IP66-rated front panel
  • 下单前货期问题请与在线客服确认
Certifications 2年保固(90X60) CE FCC_Class-A IP66 modbus MQTT RoHS UL-Listed

加入购物车 立即购买

详细规格

General

  • Protocol 500+ PLC Drivers

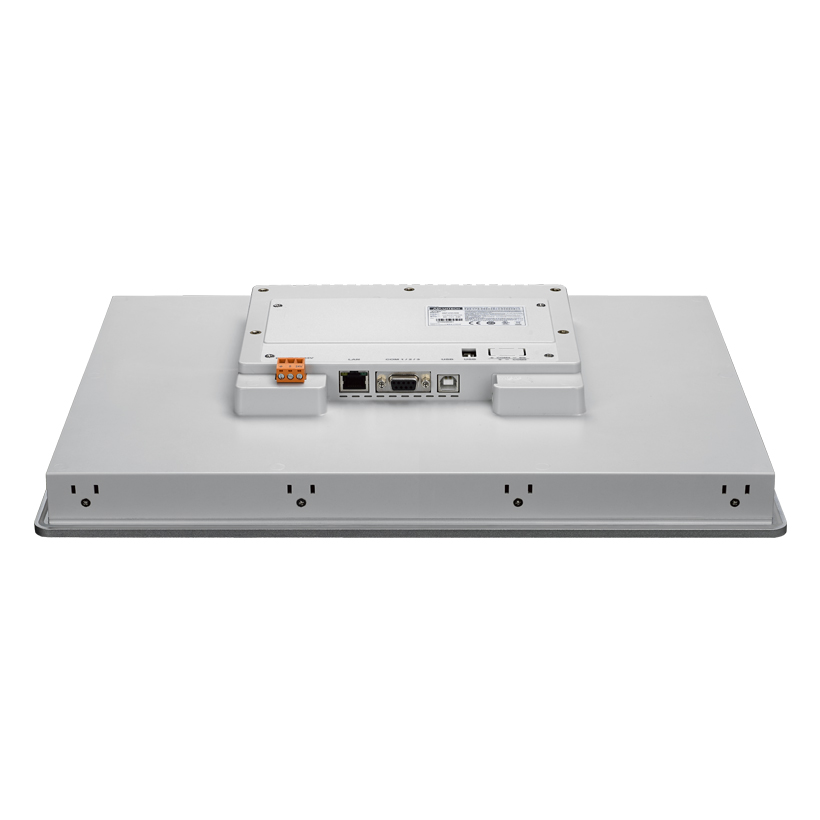

  • Connectors 1 x RJ45, 1 x DB9 female
  • Programming Language HMINavi Designer
  • Rated Voltage 24 VDC (±10%)

Hardware

  • CPU ARM9™ 32-bit RISC processor
  • Memory 1 x 64 MB SDRAM
  • Storage 1 x 128M NAND Flash
  • LAN 1 x 10/100 Mbps
  • Certification CE, FCC class A, UL-61010
  • Power Consumption 20 W @ 24 VDC
  • OS Support RTOS
  • Power Requirement 24 VDC ±10%

LCD Display

  • Luminance (cd/m2) 350
  • Max. Resolution 1024 x 768
  • Display Size 15"
  • Backlight Life (hrs) 20,000

I/O Interface

  • Serial Ports 1 x RS-232, 1 x RS-422/485, 1 x RS-485
  • USB Ports 1 x USB (Host), 1 x USB (Client)

Environment

  • Relative Humidity 5~95% RH (non-condensing)
  • Ingress Protection Front Panel IP66
  • Vibration Protection 1 Grms, random
  • Operating Temperature -20~60 °C (14~140 °F)

Touchscreen

  • Touch Type 4-wire resistive

Mechanical

  • Enclosure PC + ABS
  • Mounting Panel
  • Weight (Net) 3 kg (6.61 lb)
  • Dimension (W x H x D) 399.1 x 297.6 x 57.3 mm
