AIM-68S-201000 研华商城双十一活动产品

详细规格

Display

• Resolution WUXGA 1920 x 1200
• Type 10.1" FHD LCD
• Brightness (cd/m2) 380cd/m2
• Touch Type 10-point multi-touch P-CAP touch control
• Glass Type Corning® Gorilla® Glass 3

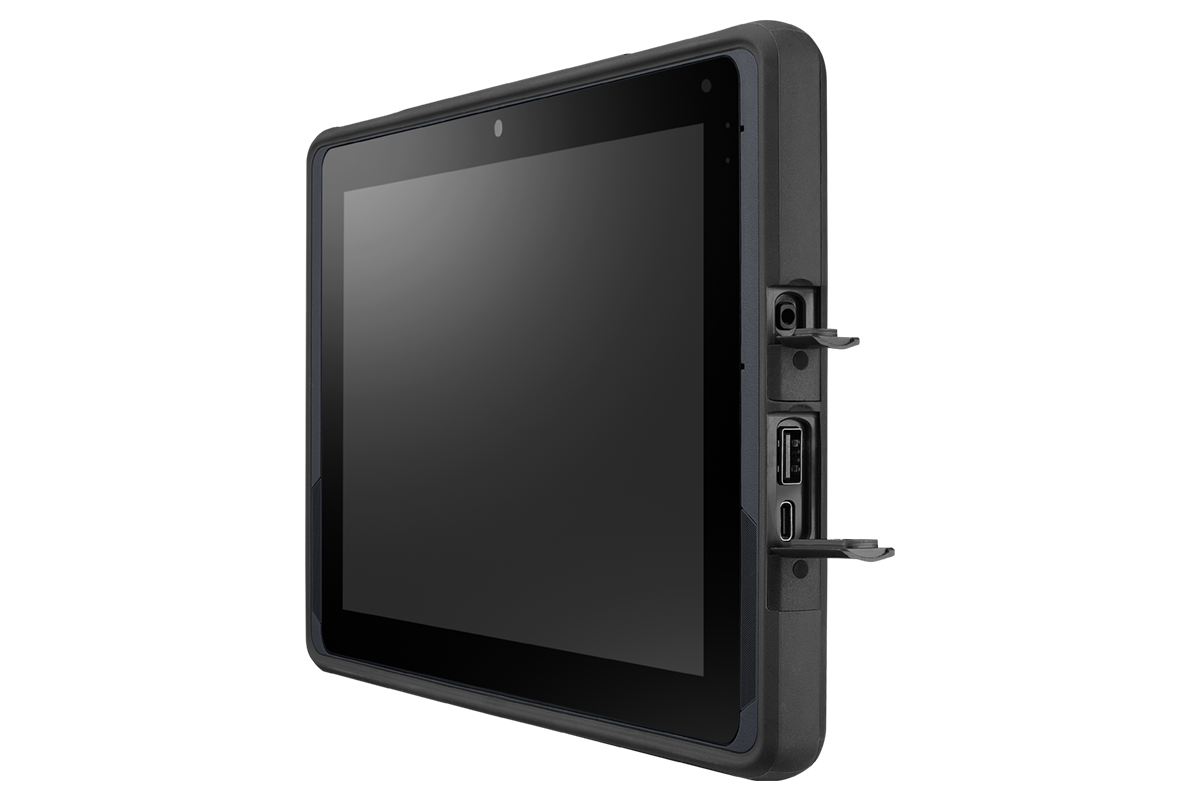

I/O

• Standard I/O Port 1x USB3.1 Type C for Charging &DP, 1x USB 3.1 type-A

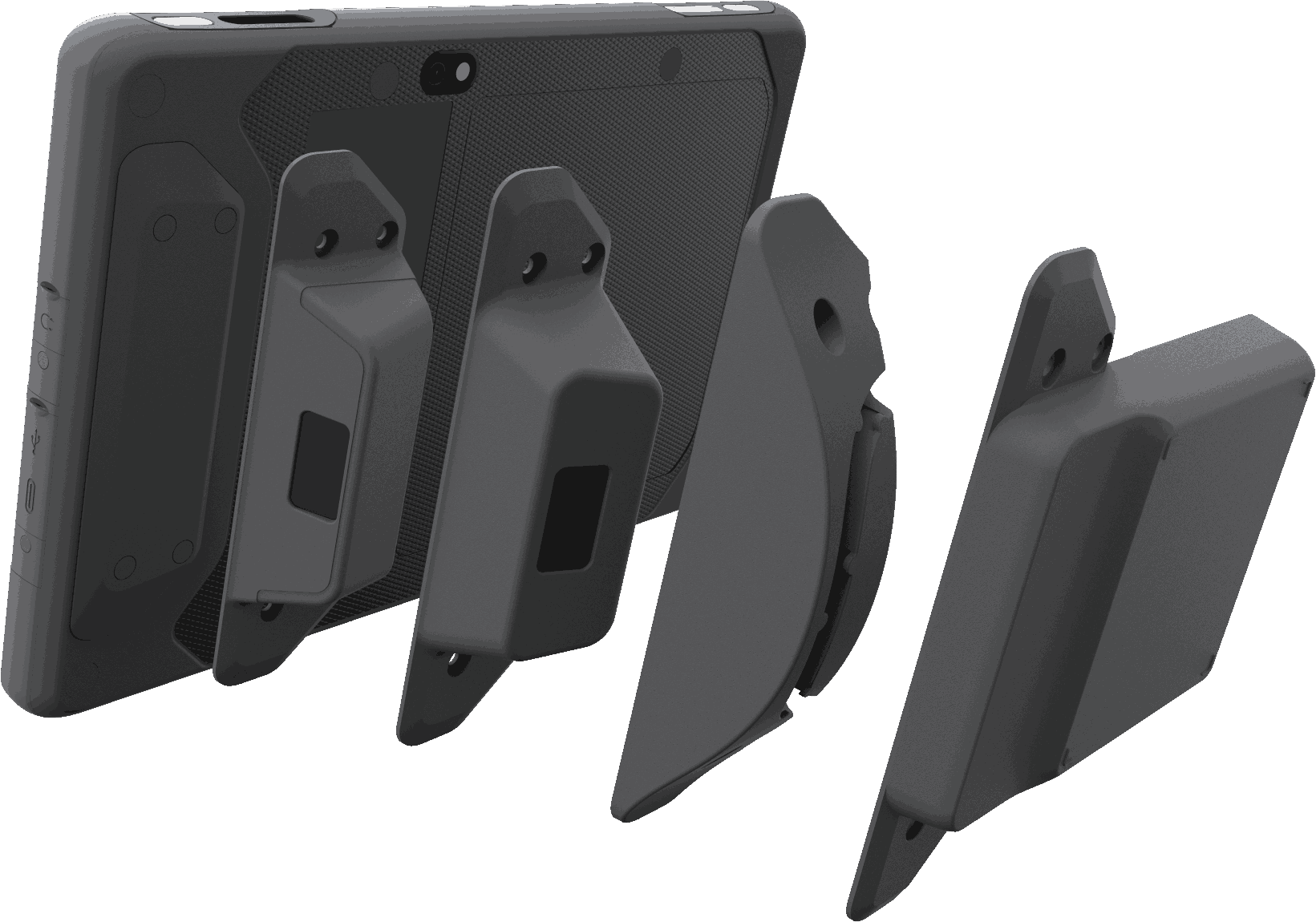

• Extended I/O Port 1 x AIM extension 14-pin pogo connector: 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power

Storage

• Storage m.2 NVMe SSD 128GB (Optional: 256GB)

Security

• _ TPM 2.0

Audio

• Audio Jack 1 x Audio combo jack (combines stereo audio output and mono microphone input)

I/O Interface

• LED Full: green (100%); Charging: blue; Low: orange (≤10%)

System

• Memory 8GB LPDDR5
• Processor Intel® N200, 3.70 GHz

Mechanical

• Dimensions (W x H x D) 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
• Weight 1.1 Kg (2.4 lb)

Computing System

• Operating System Windows 11 IoT Enterprise (GAC)

Camera

• Front 5.0-megapixel fixed-focus camera
• Rear 13.0-megapixel aufo-focus camera with LED flash

Option

• Barcode Scanner N/A

Environment

• Certifications FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC
• Operating Temperature -10 ~ 50°C (14 ~ 122°F)
• Storage Temperature -20 ~ 60 °C/-4 ~ 140 °F
• IP Rating IP65
• Charging Temperature 0 ~ 40 °C (32 ~ 104 °F)
• Shock / Vibration IEC60068-2-27 / IEC60068-2-64
• Humidity Operating: 40 °C @ 95% relative humidity, non-condensing Storage: 60 °C @ 95% relative humidity, non-condensing
• Drop Tested Up to 120 cm (4 ft) onto plywood

Connectivity

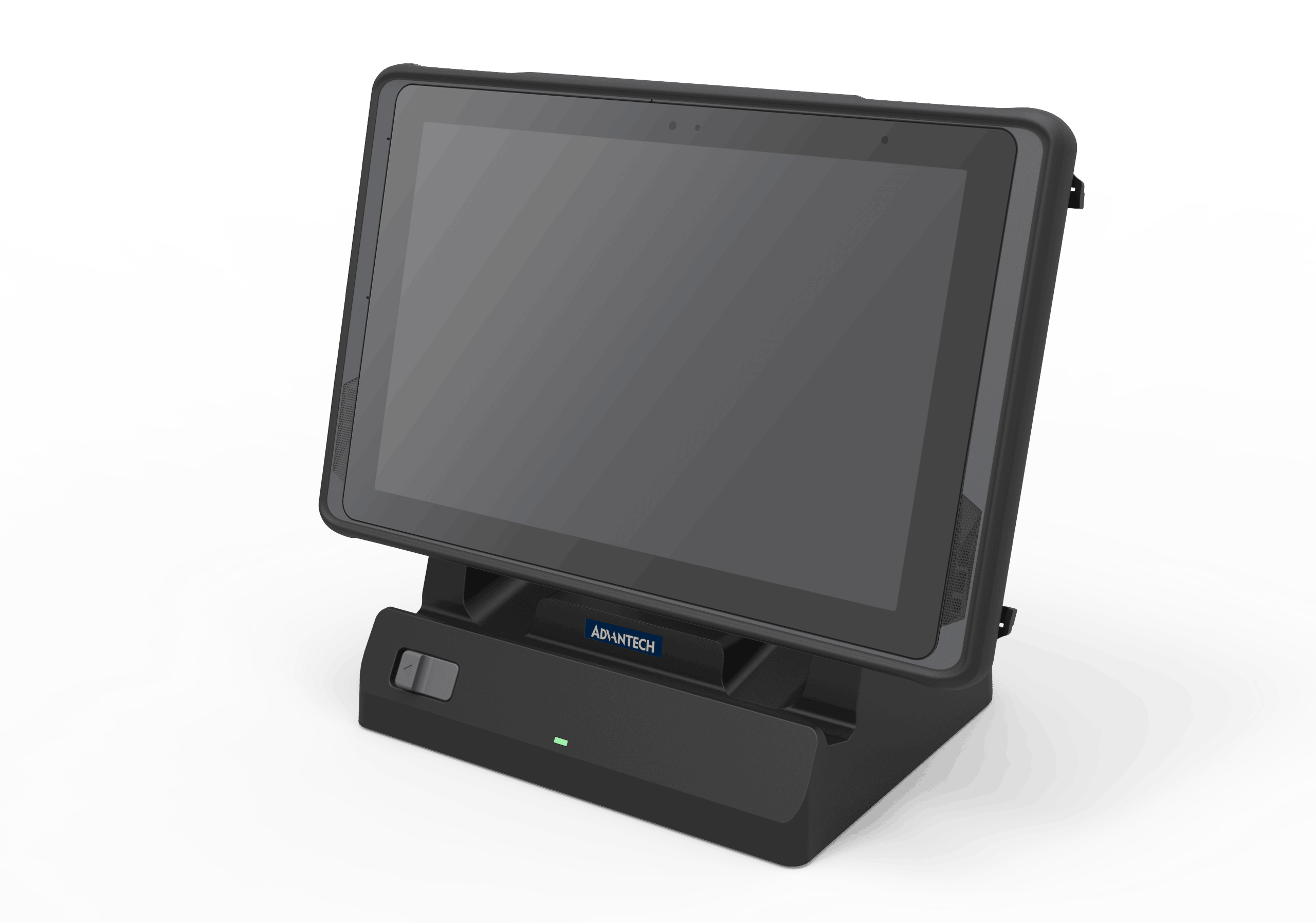

• Docking 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
• Speaker 2 x Internal speakers (2 W)

Wireless Communication

• WLAN/Bluetooth IEEE 802.11a/b/g/n/ac/ax, Bluetooth® 5.3
• NFC 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica

Sensors

• _ Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope

Power System

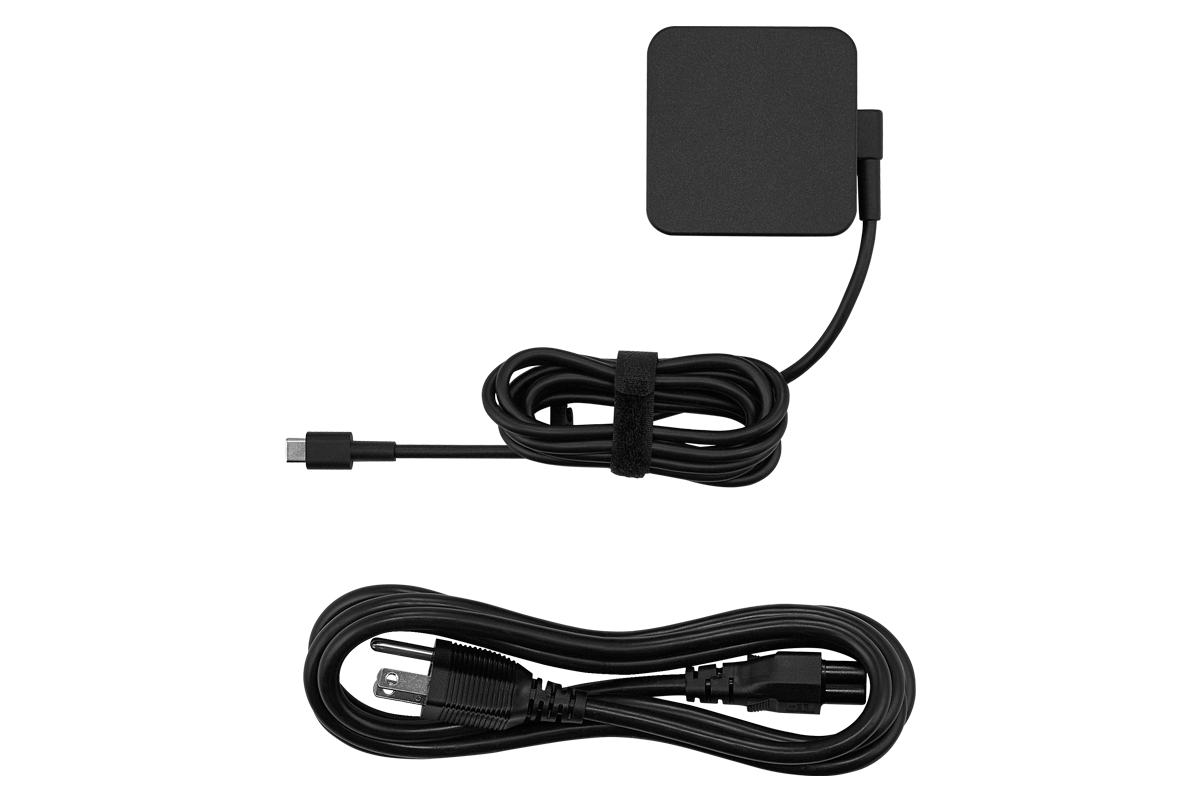

• Input Voltage USB Type-C: 20V/3.25A Docking pogo: 12V/2A
• Battery Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh, Operating time: 5.5 hr (depending on usage scenario*) Charging time: < 3 hr

Control Buttons

• - 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key
