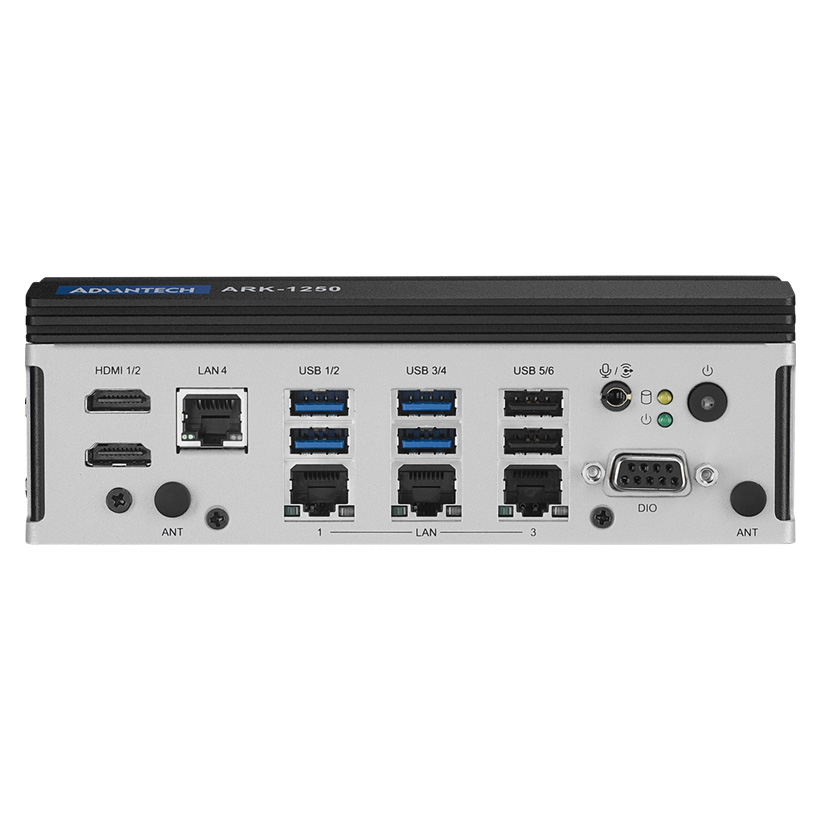

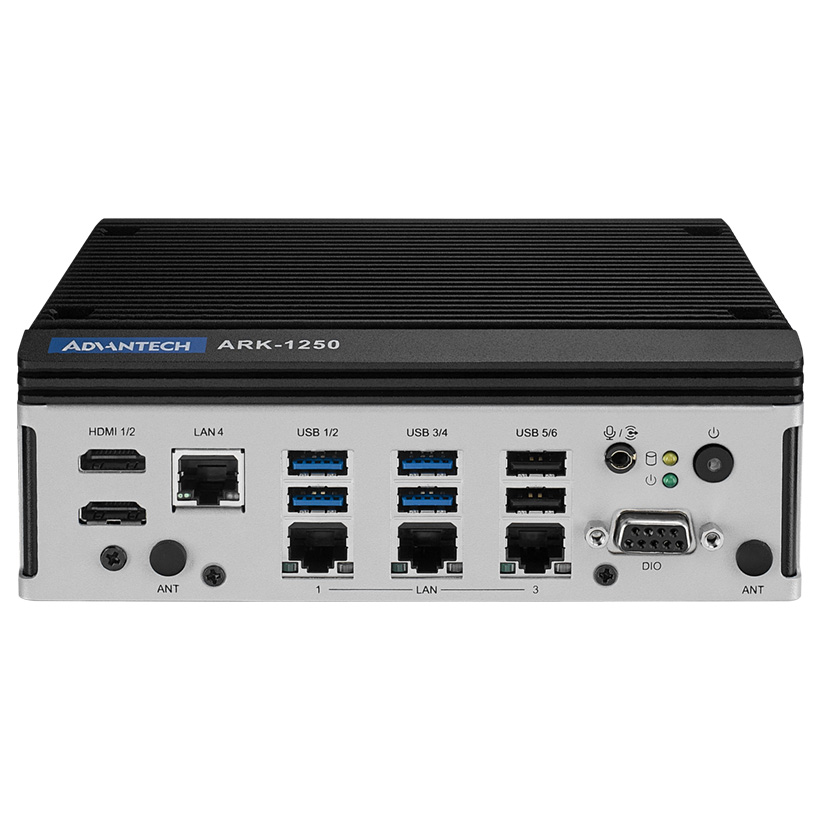

ARK-1250L-S5A1 Intel^®第11代 Core™ i 处理器，导轨式无风扇工控机

详细规格

Memory

• Technology DDR4 3200 MHz
• Max. Capacity 64 GB
• Socket 2 x 260-pin SO-DIMM
• ECC Support No

Processor

• CPU Intel Core i5-1145G7E
• BIOS AMI EFI 256 Mbit
• Frequency 1.5GHz
• Core Number 4

Storage

• mSATA 1 x Full-size (support either mSATA or miniPCIe)
• 2.5" HDD/SSD Supports 1 x SATA III Drive Bay (Compatible with 9.5mm height)

Operating System

• Ubuntu V

Environment

• Storage Temperature - 40 ~ 85° C (-40 ~185° F)

Power

• Power Type AT/ATX
• Power Adaptor AC to DC 19V/4.74A 90W (Default)
• Input Voltage 12 ~ 24 VDC

Ethernet

• Controller 3
• LAN1 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
• LAN2 10/100/1000 Mbps Intel i219GbE, support Wake On LAN
• LAN3 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN

Graphics

• Dual Display Yes, VGA + HDMI
• HDMI 1
• VGA 1

Audio

• Main System Realtek ALC888S, High Definition Audio, Line-out, Mic-in

I/O Interface

• Serial Port 4 x RS-232/422/485
• USB Interface 2 x USB3.2, 2 x USB2.0, 1 x internal USB2.0 for security dongle
• GPIO 8-bit
• Serial 4
• USB2.0 1
• USB3.0 2
• Optional I/O 1 x CANBus 2.0 (DB9 connector)

Environment

• Temperature (Operating) -40~60°C
• Relative Humidity 95% @ 40° C (non-condensing)
• Vibration During Operation With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
• Shock During Operation With SSD/mSATA: 30G

Certification

• EMC CE, FCC Class B
• Safety Certifications UL, CB, CCC

Expansion

• CAN Bus 1
• Mini PCIe #1 1 x Full-size
• Mini PCI Express 1
• M.2 2

Power Consumption

• Typical 19.8W
• Max. 35.1W

Mechanical

• Construction Aluminum housing
• Mounting DIN-rail/Wall Mount
• Dimensions 60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in)
• Weight 1.5 kg (3.3lb)

Others

• Watchdog timer 255 levels timer interval, setup by software
• TPM Optional AMO-I029

Software Support

• Microsoft Windows Windows 10/11 IoT Enterprise LTSC
• Linux Ubuntu 20.04
