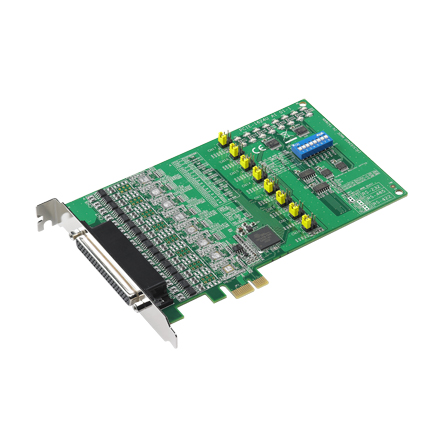

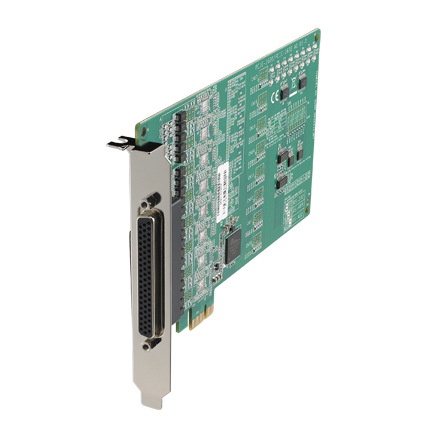

PCIE-1620A-BE 8端口RS-232 PCI快速 PCI通讯卡

  • 符合PCI Express x1规格
  • 串行速度高达921.6 kbps,支持极速数据传输
  • 支持任意波特率设置
  • 8端口RS-232
  • 支持操作系统:Windows 2000/XP/Vista/7, and Linux 2.4/2.6
  • OXuPC1954 UARTs支持128字节先进先出FIFO标准
  • 下单前货期问题请与在线客服确认
Certifications CE

加入购物车 立即购买

详细规格

General

  • Power Consumption* 260 mA @ +3.3 V (typ.)
  • Bus* PCIe
  • Certifications* CE, FCC, RoHS
  • OS Support* 32-bit/64-bit Windows 7/8/10, and Linux
  • Dimensions* 168 x 111 mm (6.6" x 4.4")
  • Connectors 1x Female DB62

Software*

  • Bundled Software ICOM Tools

Environment

  • Operating Temperature -10 ~ 60° C (14 ~ 144° F)
  • Storage Temperature -25 ~ 85°C (-13 ~ 185°F)
  • Operating Humidity* 5 ~ 95 % RH, non-condensing

Communications*

  • Data Bits 5,6,7,8
  • FIFO 256 bytes
  • Parity None, Even, Odd, Mark and Space
  • Speed 50 bps ~ 921.6 kbps, any baud rate setting
  • Stop Bits 1,1.5,2
  • Data Flow Control DTR/DSR,RTS/CTS, Xon/Xoff
  • Communication Controller XR17V352
  • Ports 8
  • Serial/CAN/GPIB/USB RS-232

Protection*

  • ESD Protection 15KV (air), 8KV (contact)
  • EFT Protection 1 KV

General

  • Serial Port Count 8
  • Serial Type RS-232
  • Serial Connector DB62 Female
  • Bus Type PCI Express
