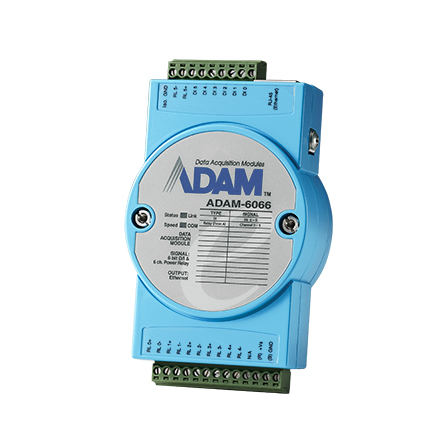

ADAM-6066-D 6 DO/6 DI Power Relay Module

详细规格

General

• Protocol Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
• Connectors 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal

Communications

• Interface Ethernet

Counter/Encoder Input

• Channels 8
• Max. Input Frequency 3 kHz

Isolated Digital Input

• Channels 6
• Input Voltage Dry Contact Logic level 0: close to GND Logic level 1: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC

Environment

• Operating Temperature -40~70 °C (-40~158 °F)
• Isolation Voltage 2,000 VDC

Relay Output

• Contact Rating (Resistive) 3 A @ 30 VDC, 5 A @ 250 VAC
• Relay Type 1 x Form A
• Channels 6

Power Requirements

• Input Voltage 10~30 VDC
