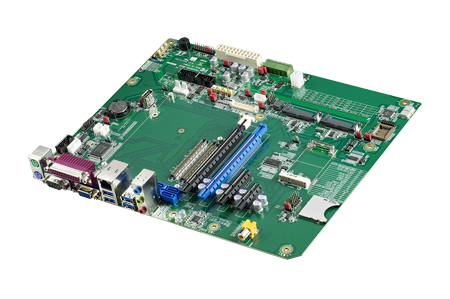

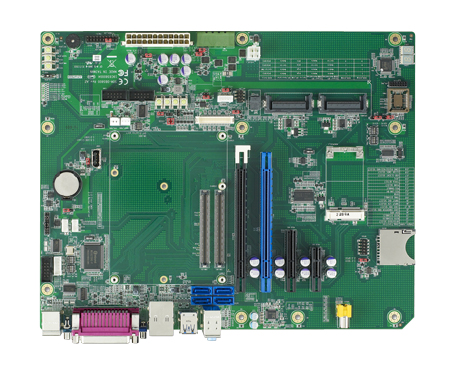

SOM-DB5800-U0A2E COM-Express Development Board Type 10 pint-out Rev. A2

COM-Express Development Board Type 10 pint-out Rev. A2
  • COM-Express Development Board Type 10 pint-out Rev. A2
  • COM-Express Development Board Type 10 pint-out Rev. A2
  • COM-Express Development Board Type 10 pint-out Rev. A2

  1. Development Board Compliant to PICMG COM.0 R2.1 Type 6 Pin-out
  2. COM Express Basic/Compact/COM-Ultra module compatible
  3. ATX form factor with both ATX & AT power support
  4. Display Type: VGA, LVDS, HDMI / DP Expand by SOM-EA20
  5. Expansion: PCIe x16, PCIe x4, PCIe x1, Mini-PCIe, Express Card
Certifications
CE
Resources
Resources Download
DatasheetDownloadManualExtended SpecificationsReturn Policy
Please visit via PC to place order/quote

$550.00

2 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Specifications
Category
Attribute
Value
Display
LVDS
18/24-bit single or dual channel
Form Factor
Form Factor
COM Express Compact R2.1, Type 6/Type 10 Pin-out
Ethernet
1 x Giga LAN
Ethernet
LAN
10/100/1000 Mbps Ethernet controller, supports Wake On LAN
Graphics
Triple Display
HDMI/DisplayPort/DVI, LVDS, VGA
Audio
Chipset
Realtek ALC892 HD Audio (Line-in, Line-out, MIC, SPDIF)
Audio
Interface
Intel HD Audio

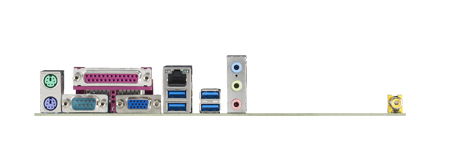

I/O Interface
USB
4 USB2.0 host, include 1 USB Client ; 4 USB3.0
Expansion
PCIe
1 PCIe x16 slot/1 PCIe x4 slot/1 PCIe x1 slot
SATA
Max. Transfer Rate
6.0 Gb/s
Compatible Models
Advantech COM-Express Basic Modules (125 x 95 mm), COM-Express Compact Modules (95 x 95 mm) and COM-Ultra
Temperature
Operation
0 ~ 60℃
Expansion Interface
PCIe
PCIe x16, PCIe x4, PCIe x1, Mini-PCIe, Express Card
