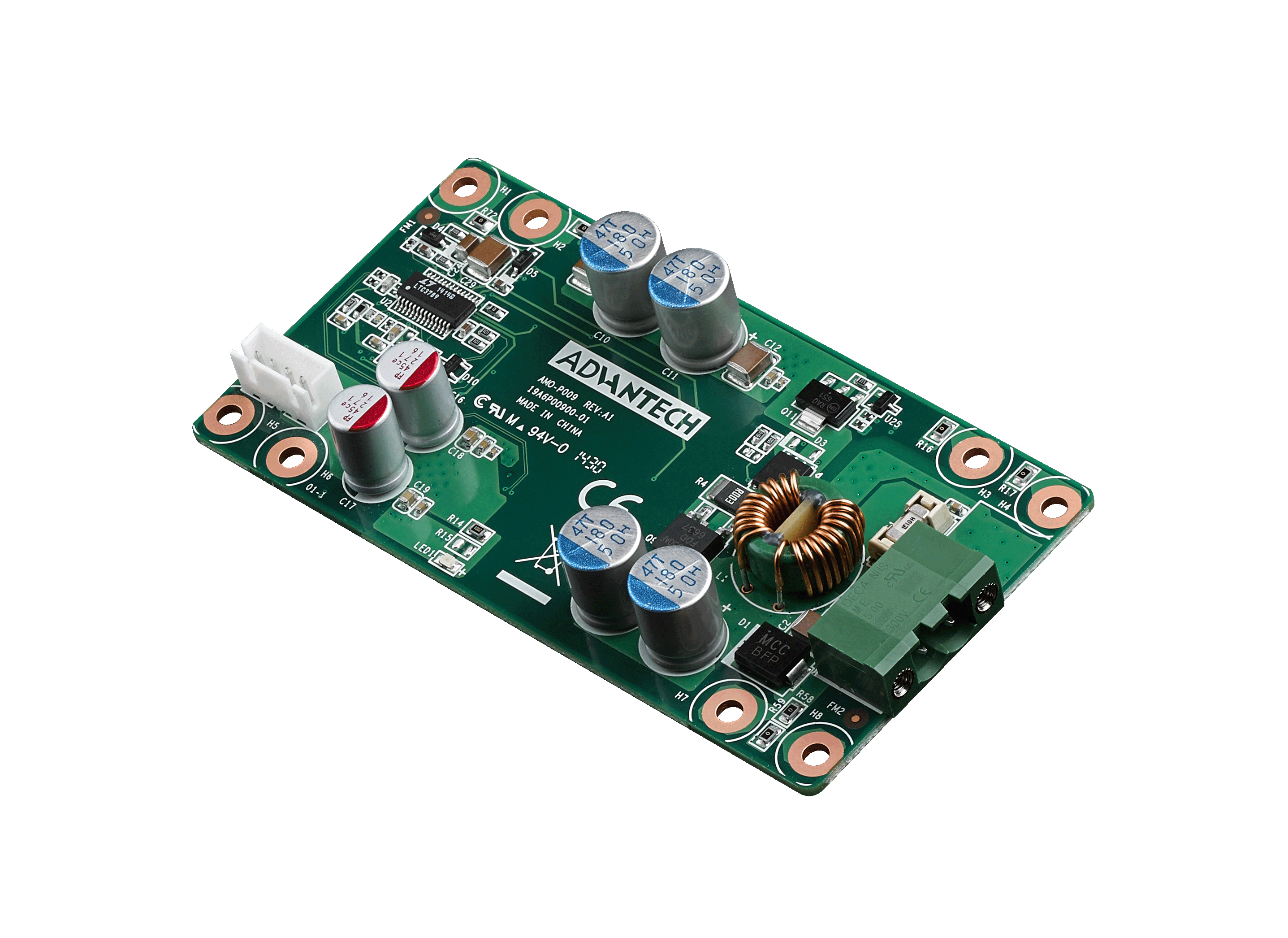

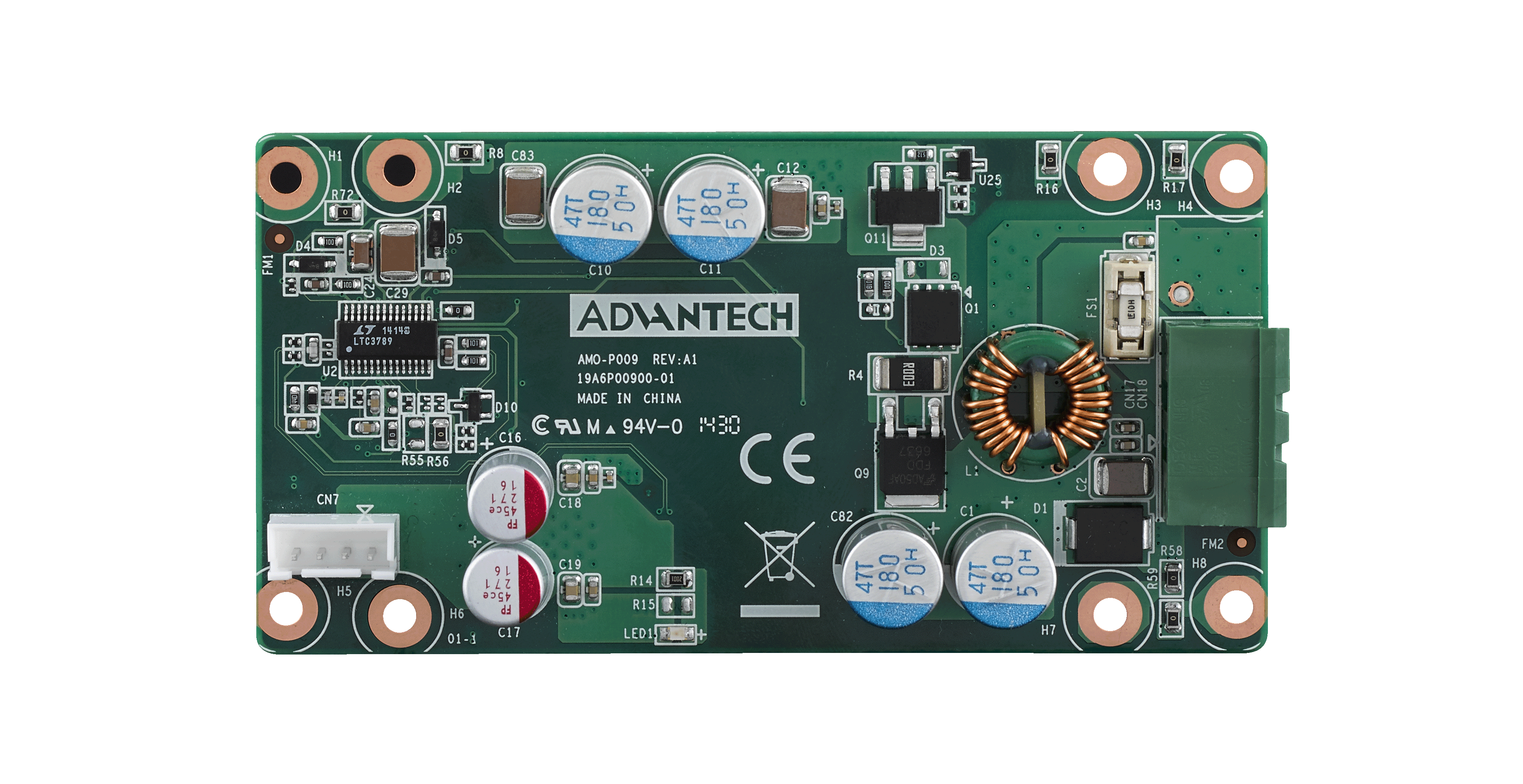

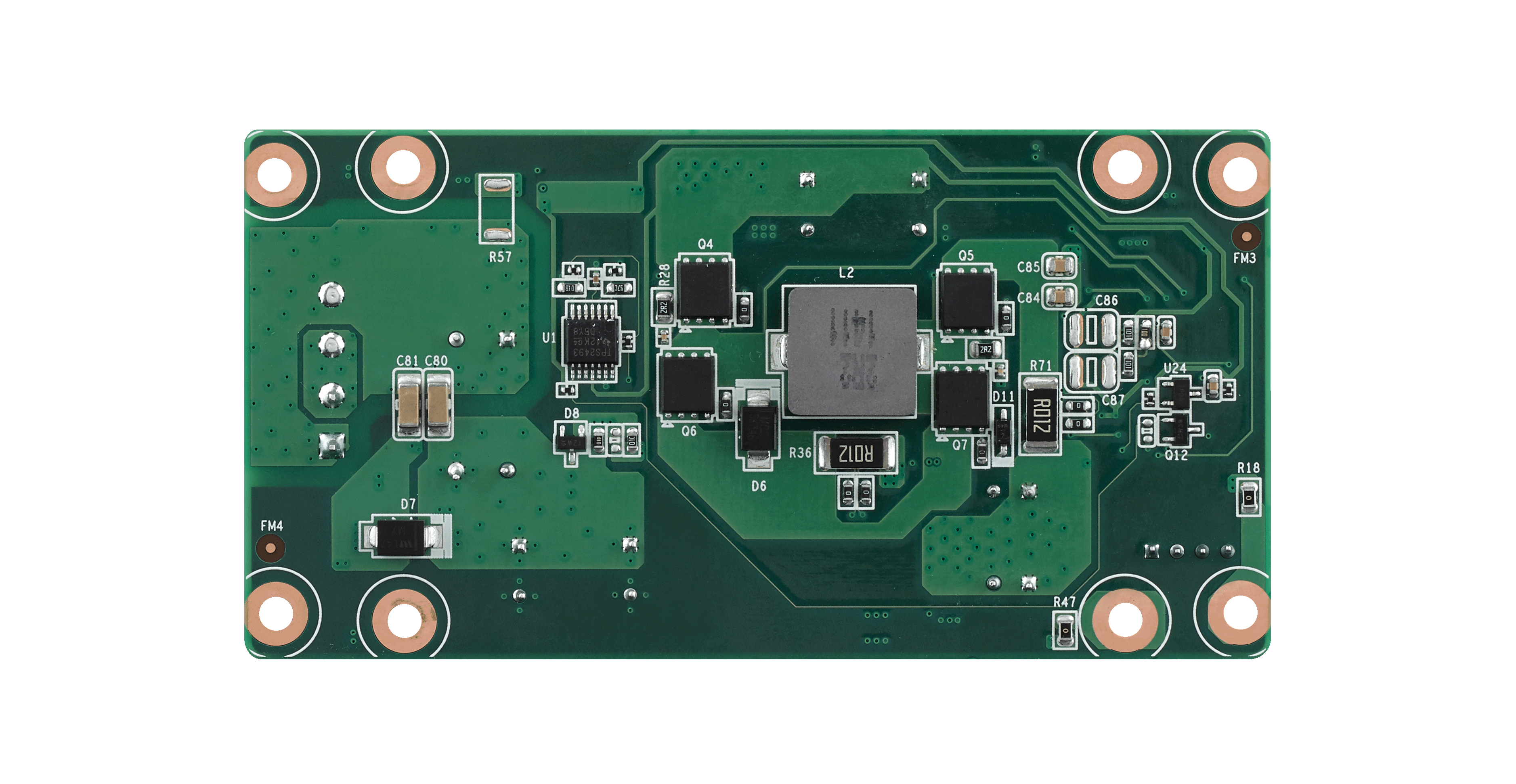

MIOE-PWR2-00A1E 9-36V DC to DC 12V宽压电源模块

  • 9-36V直流到直流电源模块MI / O机箱兼容
产品规格 产品3D 模型 下载

加入购物车 立即购买
MIOE-PWR2-00A1E
MIOE-PWR2-00A1E
MIOE-PWR2-00A1E
加入购物车

产品已加入购物车

> 前往结帐

详细规格

General

  • Input Voltage 9 to 36 VDC
  • Output Voltage 12V+/-10%
  • Output Current Max. 5A
  • Protection OVP, OCP, Anti-reverse
  • Connector type Input: Phoenix 2pin; Output: 4pin 2.54mm Wafer

Mechanical and Environmental

  • Dimensions (L x W) 102 x 53 mm (4" x 2.1")
  • Weight 0.115 kg (0.253 lb)
  • Operating Temperature 0 ~ 60° C (32 ~ 140° F)
  • Operating Humidity 10~95% R.H. @ 40C, 95% R.H. non-condensing
