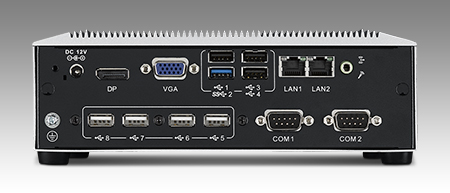

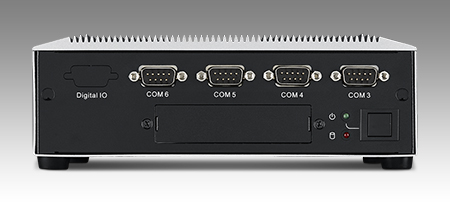

ARK-6322-Q0A2E Intel Celeron 四核J1900 SoC，6xCOM，8xUSB无风扇嵌入式工控机

详细规格

Memory

• Technology Dual channel DDR3L 1333MHz SDRAM
• Max. Capacity 8 GB
• Socket 2 x 204-pin SO-DIMM
• ECC Support No

Processor

• Max Speed 2.0 GHz, Turbo Boost up to 2.41GHz
• CPU Intel Celeron Processor J1900 Quad Core
• L2 Cache 2 MB
• BIOS AMI 16 Mbit SPI (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project)
• Core Number 4

Storage

• mSATA 1 x mSATA share with mini-PCIe slot
• 2.5" HDD/SSD 1 x SATA HDD Bay for 2.5" or 3.5" device with maximum height 26.1mm

Environment

• Operational Temperature With extended temperature peripherals/SSD: 0 ~ 50° C (32 ~ 122° F) with 0.7 m/s air flow, With 3.5-inch hard disk 0 ~ 40° C (32 ~ 104° F) with 0.7 m/s air flow, With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7 m/s air flow
• Storage Temperature -40 ~ 85° C (-40 ~ 185° F)

Power

• Power Type ATX
• Power Adaptor AC to DC, DC12V/5A, 60 W (Optional)
• Input Voltage 12 VDC
• Consumption Typical 15.7 W, Max. 24.7 W

Ethernet

• LAN1 10/100/1000 Mbps RTL8111E GbE
• LAN2 10/100/1000 Mbps RTL8111E GbE

Graphics

• VRAM Shared system memory up to 224 MB SDRAM
• Dual Display VGA+DP
• Display port 1
• VGA 1
• Controller Intel Gen 7 Graphics Engines and media encode/decode engine; GPU Frequency: 688 MHz

Audio

• Main System Realtek ALC892, High Definition Audio, Line-out, Mic-in

I/O Interface

• Serial Port 5 x RS-232, 1 x RS232/422/485
• USB Interface 1 x USB 3.0 port and 7 x USB 2.0 ports
• GPIO 8-bit
• Serial 6
• USB2.0 7
• USB3.0 1

Environment

• Relative Humidity 95% @ 40° C (non-condensing)
• Vibration During Operation With HDD: 0.5 Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis
• Shock During Operation With HDD: 10 G, IEC 60068-2-27, half sine, 11 ms duration

Certification

• EMC CE/FCC Class A, CCC, BSMI
• Safety Certifications CB, UL, CCC, BSMI

Expansion

• Mini PCIe #1 1 x Full-size Mini PCIe, supports mSATA module and WWAN module;
• Mini PCIe #2 1 x Half-size Mini PCIe, supports WLAN module
• Mini PCI Express 2

Power Consumption

• Typical 15.7W
• Max. 24.7W

Mechanical

• Construction Aluminum housing
• Mounting Wall mounting kit (optional), VESA mounting kit (optional)
• Dimensions 200 x 64 x 200 mm
• Weight 2.0 kg

Others

• Watchdog timer 255 levels timer interval, setup by software

Software Support

• Microsoft Windows Windows 10, Windows 8 , Windows 7, WES8, WES7
• Linux Support by project
