EPC-T4218JW-00Y0E 适配Intel 第8代 奔腾/赛扬/凌动系列处理器。1U超薄高度,无风扇系统,性能强劲。

  • 支持Intel 第8代 奔腾/赛扬/凌动 双核/四核处理器
  • 2 x 260pin SO-DIMM,最高可达32GB DDR4 3200MHz
  • 独立三显:DP/HDMI
  • 12V DC-IN供电,锁定式直流电源插孔
  • 1 x 2.5寸抗震硬盘托架
  • 44mm超薄无风扇设计,支持上架
  • 支持壁挂/VESA安装模块
  • 支持SUSI、DeviceOn和Edge AI套件
  • 下单前货期问题请与在线客服确认
Certifications CE CE CE CE CE CE

加入购物车 立即购买

详细规格

Memory

  • Technology 2 x 32GB DDR4 3200MHz SDRAM
  • Max. Capacity 64GB (up to 32GB per DIMM)
  • Socket 2 x 260 Pin DDR4 SO-DIMM for Dual Channel

Processor

  • CPU Intel Celeron J6412
  • BIOS AMI 256 Mbit SPI

Storage

  • 2.5" Drive Bay 1 (support 2.5" SSD, max 7.5 mm height)
  • M.2 1 x M.2 B key (type 2242 or 2280)

Miscellaneous

  • LED Indicators 2 (Power LED, HDD LED)

Environment

  • Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
  • Vibration Resistance 3G (2.5" SSD/ M.2 storage)
  • Humidity 10 ~ 95% @ 40° C, non-condensing
  • Operating Temperature 0 ~ 45° C (32 ~ 113° F)(w/o Expansion Card)

Embedded OS

  • OS Support Win10/Ubuntu

Ethernet

  • Interface 10/100/1000 Mbps
  • Controller LAN1/ LAN2: Realtek RTL8111H
  • Connector 2 (RJ-45)

Graphics

  • Chipset Intel® UHD Graphics for 10th Gen Intel® Processors

Audio

  • Chipset Realtek ALC888S, High Definition Audio (HD)

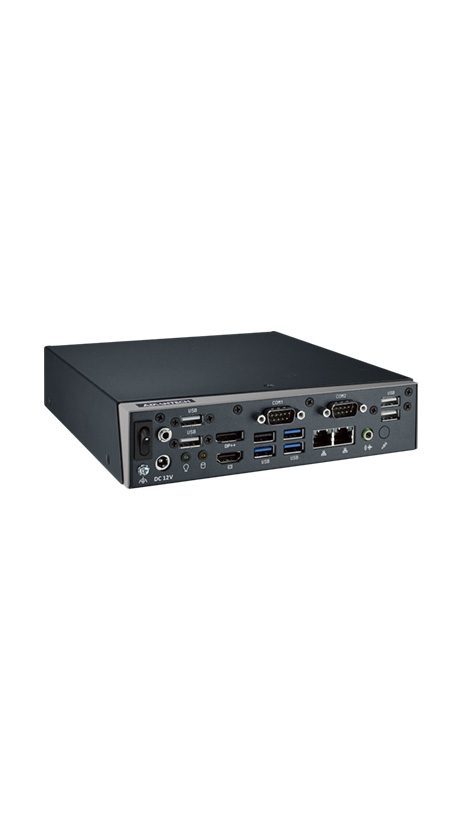

Front I/O Interface

  • USB 3x USB 3.0, 5x USB 2.0
  • COM 2 COM
  • Audio 1 (Line-Out)
  • HDMI 1
  • DP 1
  • DC Jack 1
  • Power Button 1 x power button; 1 x remote Power Jack

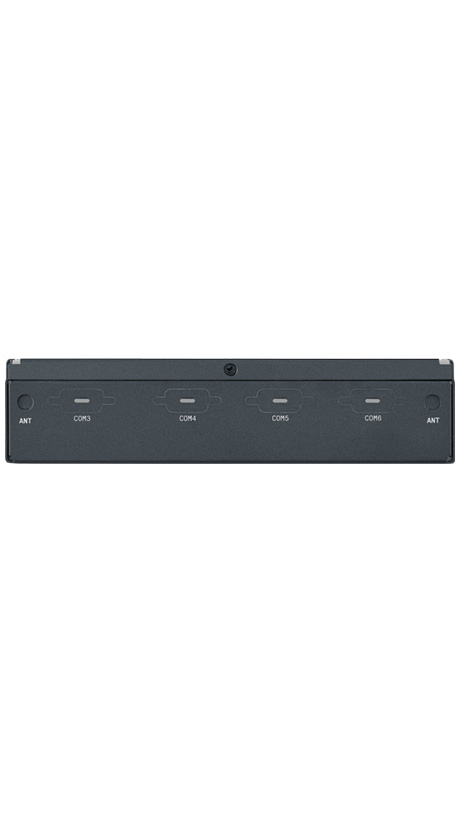

Rear I/O Interface

  • COM 4 (RS-232 with D-SUB ; Optional)
  • Antenna 2 (reserved )

Power Requirement

  • Voltage 12V DC-in
  • Power Consumption 25.4W (with CPU x6413E, 32GB RAM, 256GB SSD)

Expansion

  • M.2 1 x E key for wireless module (Type: 2230) 1 x B key for storage and LTE module, only support PCIex1 signal (Type: 2242 or 2280)

Dimensions

  • Dimensions (W x H x D) 188 x 44.2 x 188 mm (7.4" x 1.74" x 7.4")

Weight (kg)

  • Weight (kg) 2.12 Kg

Thermal Solution

  • Thermal Solution FANLESS
