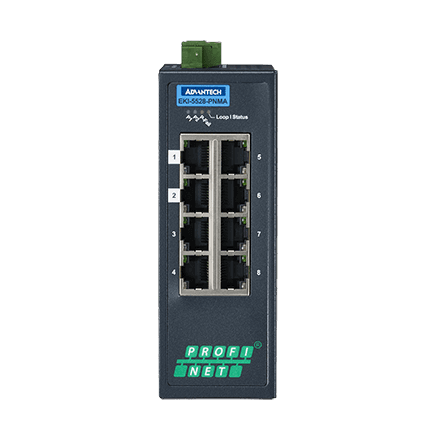

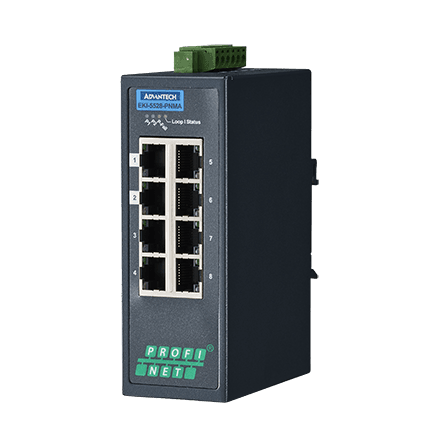

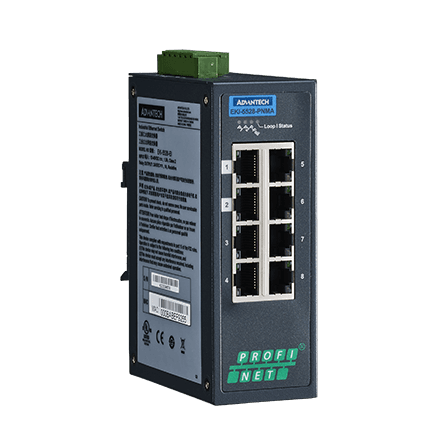

EKI-5528-PNMA-AE 8端口支持 PROFINET MRP Master 协议简易网管型工业交换机

详细规格

Power

• Power Consumption 5.2W (system)
• Power Input (DC) 12 ~ 48 VDC
• Power Connector Type 6-pin removable screw terminal (power & relay)
• Power Operating Current 0.1A @ 48VDC (system)
• Power Input (AC) -
• Power Input (PoE) -
• Power Input (Battery) -
• Redundant Dual Inputs -

Protection

• Reverse Polarity Present
• Overload Current -

Environment

• Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
• Operating Temperature -10 ~ 60°C (14 ~ 140°F)
• Relative Humidity 10~95%
• Temperature (Min. Operating) -10°C (14°F)
• Temperature (Max. Operating) 60°C (140°F)

Mechanism

• Dimensions (W x H x D) 43 x 120 x 84 mm
• IP Rating IP30
• Weight 0.50 kg (1.1 lbs)
• Mounting (DIN-rail) Yes
• Mounting (Pole Mount) -
• Mounting (Rack Mount) -
• Mounting (Wall) Yes
• Mounting (Stack) -
• Enclosure (Plastic) -
• Mounting (Panel) -

Ethernet Communication

• RJ-45 Transmission Speed 10/100 Mbps
• RJ-45 Port Number 8
• RJ-45 Port Connector Type RJ-45
• RJ-45 Transmission Distance 100 m
• Fiber Port Interface -
• Fiber Port Connector Type -
• Fiber Transmission Distance -
• Fiber Port Number -
• Fiber Transmission Speed -
• RJ-45/SFP Combo Port Number -
• RJ-45/SFP Combo Port Speed -

Switch Properties

• MAC Table Size 8K
• Packet Buffer Size 4.1M bit
• Switch Fabric Speed 1.6Gbps
• Jumbo Frame 9,216 bytes

Certification

• Safety UL 508
• EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• EMI CE, FCC Class A
• EMS -
• Shock IEC 60068-2-27
• Freefall IEC 60068-2-32
• Vibration IEC 60068-2-6
• Ethernet Standard IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az

MTBF

• Time 4,176,861 hours
• Method Telcordia(Relax), GB

Warranty

• Warranty Period 5 years

PoE Information

• PoE Budget -
• PoE Port Number -
• PoE Output -
• Support PoE No

Protocol Support

• Modbus TCP -
• Modbus RTU -
• PROFINET Yes
• EtherNet/IP -
• EtherCAT -
• OPC UA -
• BACnet -
• Ethernet Yes
