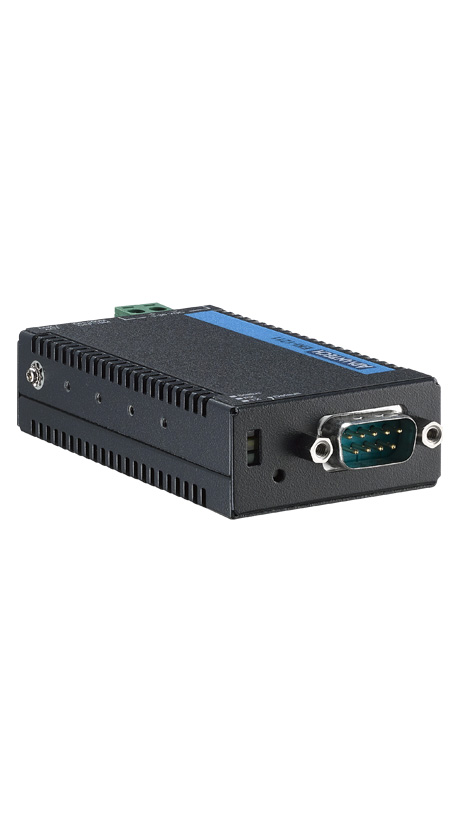

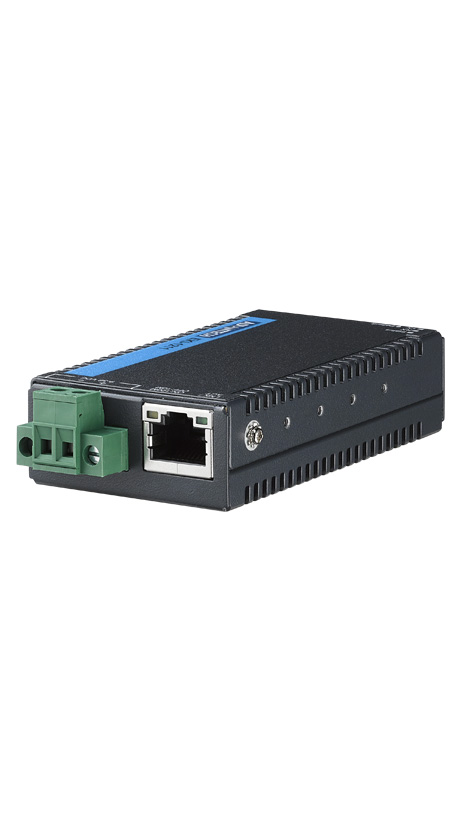

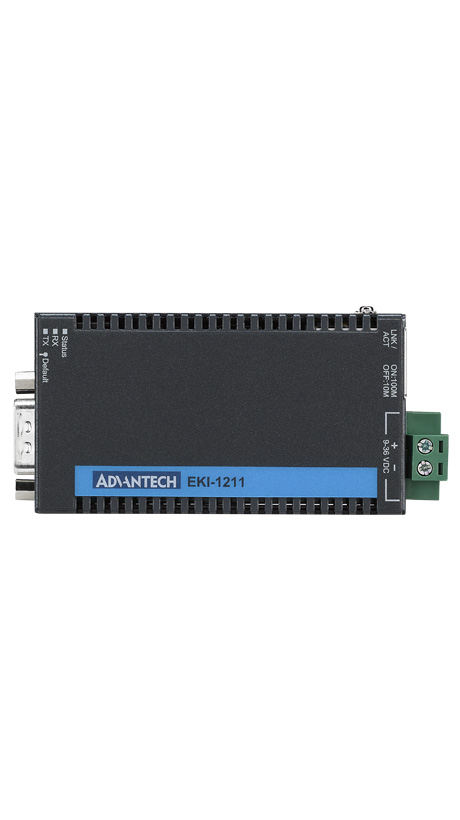

EKI-1211-A 单口RS-232/422/485 Modbus网关

详细规格

Power

• Power Consumption 1W
• Power Input (DC) 9 ~ 36 VDC

Protection

• Ethernet Isolation Built-in 2.25 k VDC magnetic isolation
• Serial Isolation Built-in 8 kV ESD for all signals

Serial Communication

• Serial Port Number 1
• Baud Rate 300~230.4 kbps
• RS-232 Yes
• RS-422 Yes
• RS-485 Yes
• Serial Port Connector Type DB9 male
• Serial Transmission Speed 300 ~ 230.4 kbps

Software

• Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
• Operation Mode Modbus RTU Client/Server, Modbus ASCII Client/Server

Environment

• Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
• Operating Temperature -40 ~ 75°C (-40 ~ 167°F)

Mechanism

• Enclosure (Metal) Metal with solid mounting hardware
• Dimensions (W x H x D) 46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.)
• IP Rating IP30
• Mounting (DIN-rail) Yes
• Mounting (Wall) Yes

Ethernet Communication

• RJ-45 Transmission Speed 10/100 Mbps
• RJ-45 Port Number 1
• RJ-45 Port Connector Type 1 x RJ-45

Certification

• EMC CE, FCC
• EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
• EMS EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
• Shock IEC 60068-2-27
• Freefall IEC 60068-2-32
• Vibration IEC 60068-2-6

Warranty

• Warranty Period 5 years
