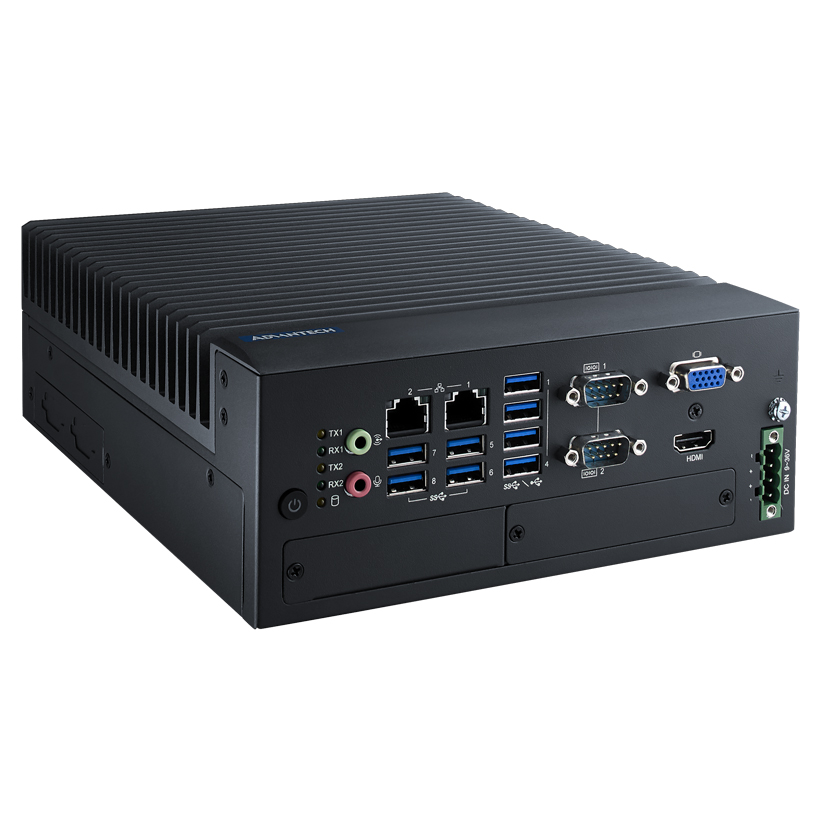

MIC-770V3W-00A1 英特尔 12/13/14代 Core™ i CPU 接口 (LGA 1700)紧凑型无风扇系统

详细规格

Processor System

• CPU Intel® Core™ processors (14th/13th/12th Gen)
• CPU TDP Up to 65 W
• Core Number Up to 24
• L3 Cache Up to 30 MB
• BIOS AMI 256 / 128 Mbit SPI Flash
• Chipset Intel® R680E
• Socket 1 x LGA1700

Memory

• Technology Dual-channel DDR5 4800 MHz
• Socket 2 x 262-pin DDR5 SO-DIMM
• Max. Capacity 64 GB

Ethernet

• Controller LAN1: Intel® I219-LM, LAN2: Intel® I210-IT
• Speed 10/100/1000 Mbps
• Connector 2 x RJ45

WatchDog Timer

• Output System Reset
• Interval Programmable 1 ~ 255 sec/min

Storage

• HDD 1 x 2.5" internal HDD/SSD bay
• mSATA 1
• M.2 1 x NVMe M.2 2280 (PCIe Gen4.0 x4), M-Key
• RAID 0/1/5/10

Front I/O Interface

• Display 1 x VGA, 1 x HDMI
• LAN 2
• COM 2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)
• Audio 2 (Mic-in, Line-out)
• USB 2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal)

Power Supply

• Power Type ATX, AT
• Input Range 9 ~ 36 VDC

Environment

• Operating Temperature -20~50 °C with 0.7 m/s air flow
• Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F)
• Operating Shock With SSD: 20 G, IEC-68-2-27, half-sine wave, 11 ms duration
• Humidity 95% @ 40° C (non-condensing)

Mechanical

• Weight (Net) 2.8 kg (6.17 lb)
• Dimension (W x H x D) 77 x 192 x 230 mm
• Mounting Desktop, Wall mount

Certification

• EMC, Safety CE/FCC Class A, CCC, BSMI, UL/CB

Graphics

• Controller Intel® UHD Graphics

Expansion

• Mini PCIe 2
• PCIe x16 Supported via i-Module
• PCIe x8 Supported via i-Module
• PCIe x4 Supported via i-Module
• PCIe x1 Supported via i-Module
• PCI Supported via i-Module
