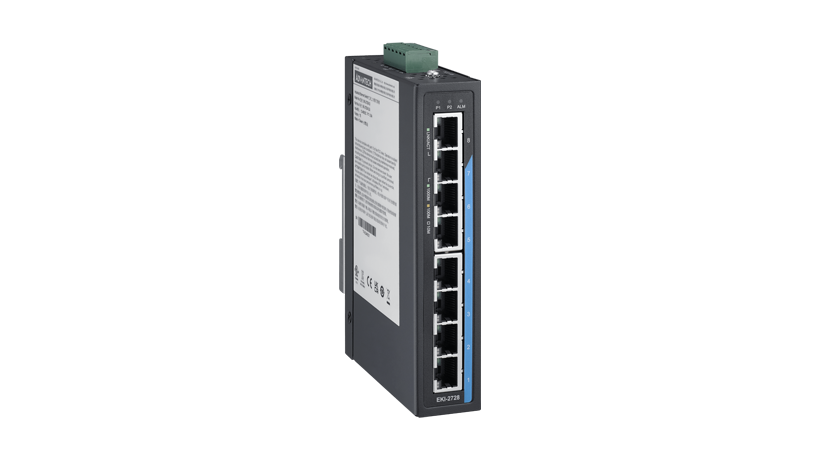

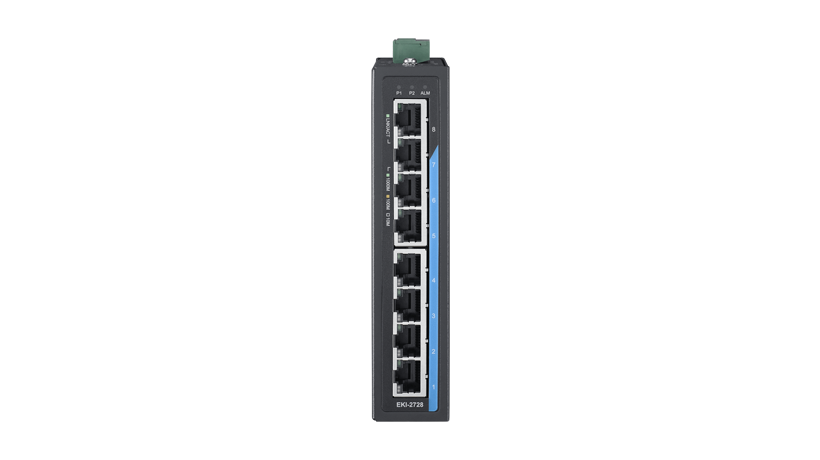

EKI-2728-D 8端口全千兆非网管型工业以太网交换机

详细规格

Power

• Power Consumption Max. 3.9W
• Power Input (DC) 12 ~ 48 VDC
• Power Connector Type 6-pin removable screw terminal
• Redundant Dual Inputs Yes

Protection

• Reverse Polarity Present
• Overload Current Present

Environment

• Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
• Operating Temperature -10 ~ 60°C (14 ~ 140°F)
• Temperature (Min. Operating) -10°C (14°F)
• Temperature (Max. Operating) 60°C (140°F)

Mechanism

• Dimensions (W x H x D) 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
• IP Rating IP30

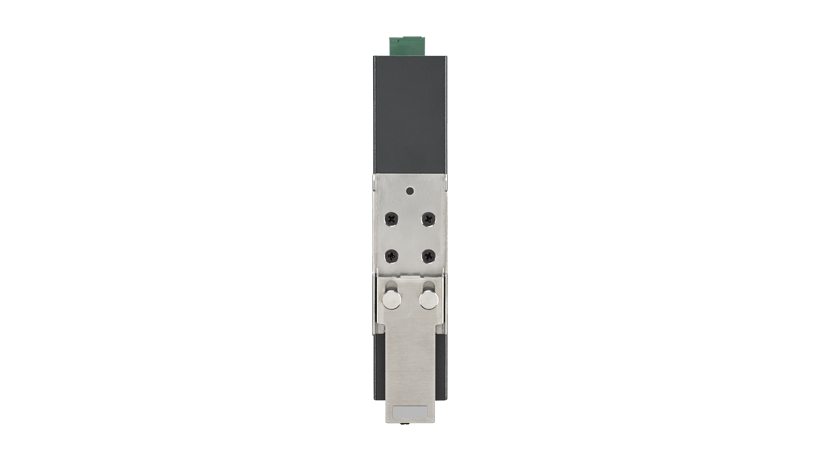

• Mounting (DIN-rail) Yes
• Mounting (Wall) Yes

Ethernet Communication

• RJ-45 Transmission Speed 10/100/1000 Mbps
• RJ-45 Port Number 8
• RJ-45 Port Connector Type RJ-45
• RJ-45 Transmission Distance 100 m

Certification

• Safety UL 62368
• EMI CE, FCC Class A
• EMS EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Warranty

• Warranty Period 5 years

PoE Information

• Support PoE No
