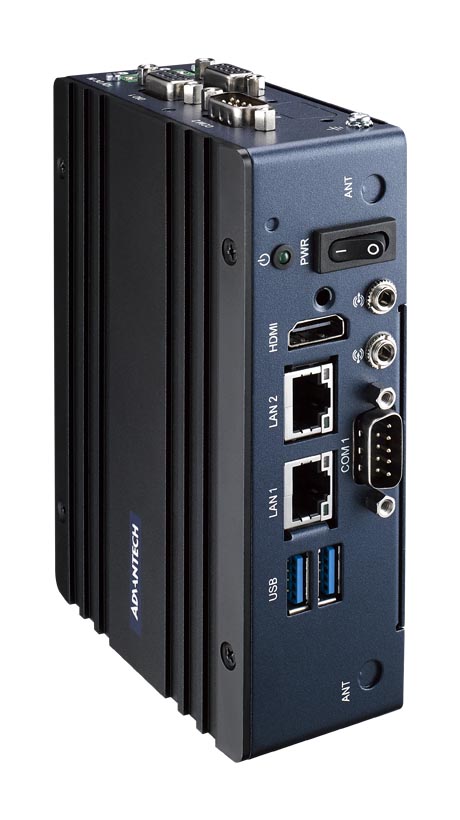

EPC-S202E-U0A1 嵌入式工控机 /ATOM/板载4GB内存/ 32GB eMMC/多种安装方式 灵活拓展

详细规格

Display

• HDMI Up to 3840 x 2160 at 30Hz
• Controller Intel® HD Graphics 505
• Graphic Engine 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG

I/O

• COM Port 1 (RS232/422/485)
• Digital I/O 1 (8-bit general purpose input/ output)

Memory

• Technology Onboard LPDDR4-2400
• Max. Capacity Default 4GB, max. up to 8GB
• Socket 4 GB on-board memory

Processor

• CPU Intel Atom® x7-E3950 Processor
• L2 Cache 2 MB
• BIOS AMI UEFI BIOS at 64 Mb
• Frequency 1.6 GHz
• Core Number 4
• Max Turbo Frequency 2 GHz

Storage

• eMMC 32GB

Miscellaneous

• LED Indicators Power
• Control Power switch

Operating System

• Ubuntu V

Environment

• Operational Temperature -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow
• Non-Operational Temperature -40 ~ 85° C (-40 ~ 185° F)

Power

• Power Type AT
• Input Voltage 12 VDC
• Connector Type 2-Pole Phoenix DC plug in

Ethernet

• LAN 10/100/1000 Mbps, Intel i210

Audio

• Chipset Realtek ALC888S, High Definition Audio (HD), Line-in, Line-out

Environment

• Relative Humidity 40 °C @ 95%, Non-Condensing
• Vibration During Operation With Desk/Wall Mount/ DIN Rail: 3 Grms, IEC 60068-2-64, random vibration, 5 ~ 500 Hz, 1 hr/axis
• Shock During Operation 30G, IEC60068-2-27, half sine, 11m duration

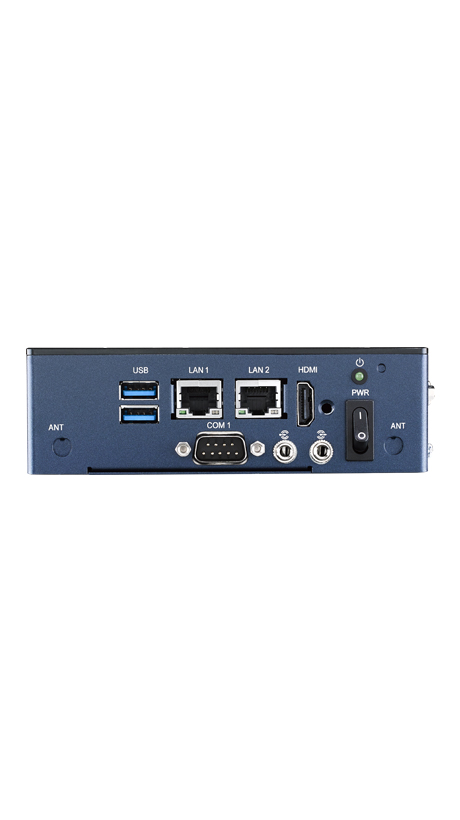

Front I/O Interface

• USB 2 USB3.0
• COM 1 (RS232/422/485)
• RJ-45 2
• Audio Line-in, Line-out
• Antenna up to 2
• HDMI 1

Expansion

• Mini PCIe 1 x Full size Mini-PCIe
• M.2 1 x M.2 2230 E Key

Physical

• Weight 0.6 kg (1.2 lb)
• Mounting Desk/ Wall Mount/ DIN Rail
• Dimensions (W x H x D) System dimension : 139 x 100 x 44 mm

Regulation

• EMC CE/FCC Class B, CCC, BSMI, VCCI
• Safety CB, UL, CCC, BSMI
