2 Year Warranty

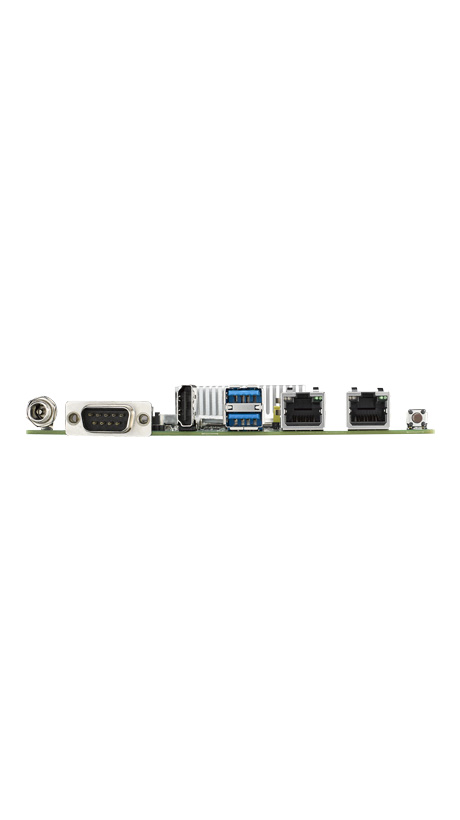

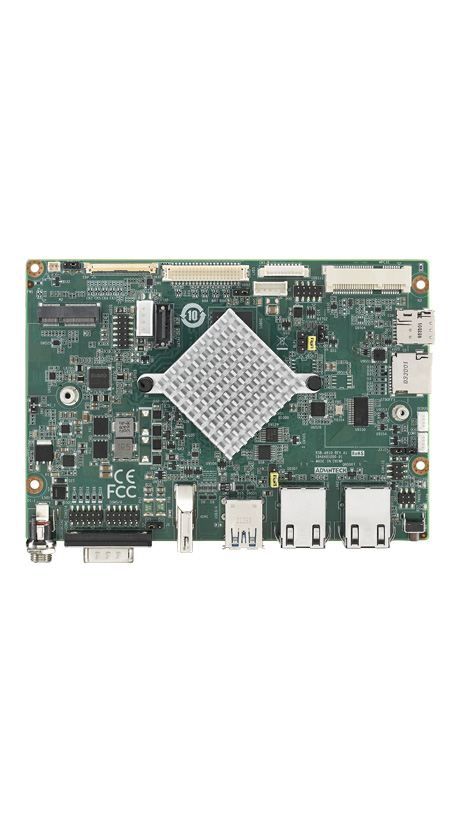

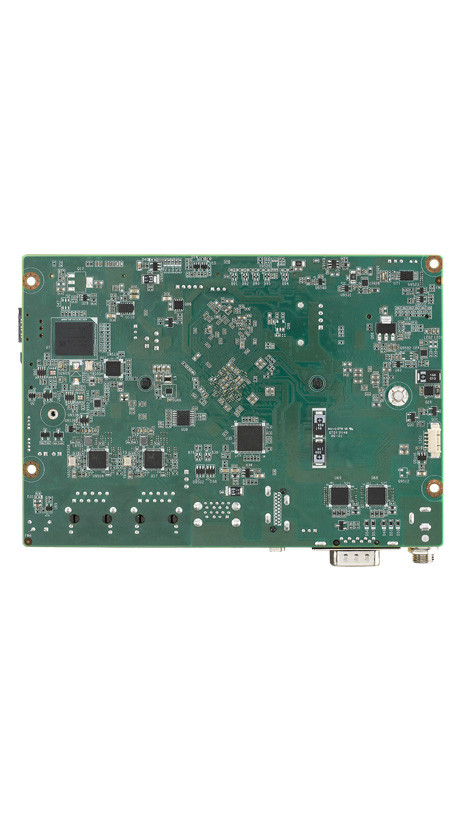

RSB-4810CQ-MNA1E Rockchip Arm Cortex-A55 RK3568 3.5" 单板电脑

  • Rockchip RK3568 Arm Quad Cortex-A55,高达2.0GHz
  • 内置NPU,处理性能最高可达 1 TOPS
  • 板载2/4GB LPDDR4内存和16/32GB eMMC
  • 支持1 x HDMI 2.0 4K、1 x LVDS/MIPI-DSI和1 x eDP
  • 支持4K H.264/H.265视频解码器
  • 提供2个GbE、1个SATA 3.0、6个UART、2个USB 3.0、2个USB 2.0、1个USB OTG和2个CAN FD
  • 为Wi-Fi 5/6模块提供带PCIE 3.0/USB 2.0/SDIO/UART信号的M.2 E密钥,为LTE/5G模块提供带PCIE 3.0/USB 2.0信号的mini-PCIe
  • 支持Linux和Android操作系统
  • 下单前货期问题请与在线客服确认
Certifications CE CE

加入购物车 立即购买

详细规格

Display

  • HDMI 1 x HDMI2.0, up to 4096 x 2160
  • LVDS 1 x single channel LVDS(Default)or 1 x 4Lane MIPI-DSI
  • Graphic Engine Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0
  • H/W Video Codec Decoder: H.265 HEVC/MVC Main10/H.264 AVC/MVC Main10/VP9 Profile0/2 up to 4096x2304@60fps; VP8,VC1,MPEG-4/2/1, up to 1920x1088@60fps
  • eDP* 1, max 2.7Gbps

Form Factor

  • Board 3.5" SBC

I/O

  • USB 1 x USB 3.2 Gen 1 by 1 Type A, 1 x USB 3.2 Gen 1 by 1 Type A/OTG, 2 x USB2.0 Pin header
  • Mini-PCIe (Internal) 1 x Mini PCIe slot, w/USB 2.0 and 1 x PCIe 3.0
  • SATA 1 x SATA 3.0
  • GPIO 6 x GPIO via pin header (3.3V TTL level)
  • Audio 1 x Mic in, HP, and Speaker out via pin header
  • Serial port 1 x RS-232 w/4wire via DB9; 2 x RS-232/RS-485 by pin header;(SW config), 3 x RS-232 by pin header; 1 x Debug by pin header
  • SATA Power 1
  • I2C 1
  • CANBus 2 x CAN FD
  • M.2 1 x M.2 2230 Key E slot, w/SIDO*UART*PCIe 3.0 x, and 1 x USB 2.0

Memory

  • Technology LPDDR4- 3732 MT/s
  • Capacity On-board LPDDR4 2GB
  • Flash 16/32GB of eMMC NAND flash for OS and Advantech's boot loader

Processor

  • CPU Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
  • NPU Up to 1.0 Tops. Supports INT8/INT16 hybrid operation

Operating System

  • Linux Linux Debian10 and Android12

Environment

  • Operational Temperature 0~60C/ -40~85C

Power

  • Power Supply Voltage 12V DC
  • Power Consumption 13W(Max)

Ethernet

  • Chipset Rockchip RK3568 Integrated RGMII
  • Speed 2 x 10/100/1000Mbps

Environment

  • Operating Humidity 5% ~ 95% Relative Humidity, non-condensing

Watchdog Timer

  • WatchDog Timer 1~6553s, default 60s, power on/off 1s

Certification

  • EMC CE, FCC Class B

Expansion

  • SIM Socket 1
  • SD Socket 1 Micro SD Slot

Mechanical

  • Dimensions 146 x 102 mm (5.75" x 4.02")
