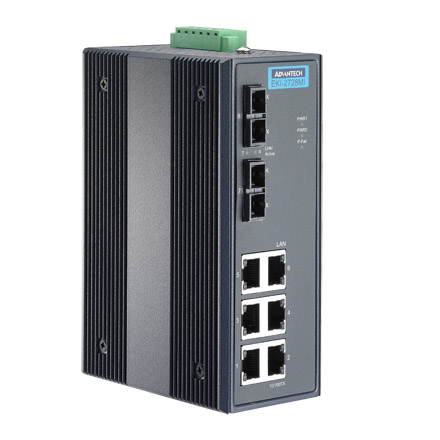

EKI-2728SI-AE 6GE+2G Single-Mode Fiber Port Unmanaged Ethernet Switch, -40~75℃

详细规格

Power

• Power Consumption Max. 7W
• Power Input (DC) 12 ~ 48 VDC
• Power Connector Type 6-pin removable screw terminal (power & relay)
• Power Operating Current 1A @ 24 VDC
• Power Input (AC) 24 VAC
• Power Input (PoE) -
• Power Input (Battery) -
• Redundant Dual Inputs Yes

Protection

• Reverse Polarity Present
• Overload Current Present

Environment

• Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
• Operating Temperature -40 ~ 75°C (-40 ~ 167°F)
• Temperature (Min. Operating) -40°C (-40°F)
• Temperature (Max. Operating) 75°C (167°F)

Mechanism

• Dimensions (W x H x D) 59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in.)
• IP Rating IP30
• Mounting (DIN-rail) Yes
• Mounting (Pole Mount) -
• Mounting (Rack Mount) -
• Mounting (Wall) Yes
• Mounting (Stack) -
• Enclosure (Plastic) -
• Mounting (Panel) -

Ethernet Communication

• RJ-45 Transmission Speed 10/100/1000 Mbps
• RJ-45 Port Number 6
• RJ-45 Port Connector Type RJ-45
• RJ-45 Transmission Distance 100 m
• Fiber Port Interface Single-Mode
• Fiber Port Connector Type SC Type
• Fiber Transmission Distance UP to 10 km
• Fiber Port Number 2
• Fiber Transmission Speed 1000 Mbps

Certification

• Safety -
• EMI CE, FCC Class A
• EMS EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Warranty

• Warranty Period 5 years

PoE Information

• PoE Budget -
• PoE Port Number -
• PoE Output -
• Support PoE No
