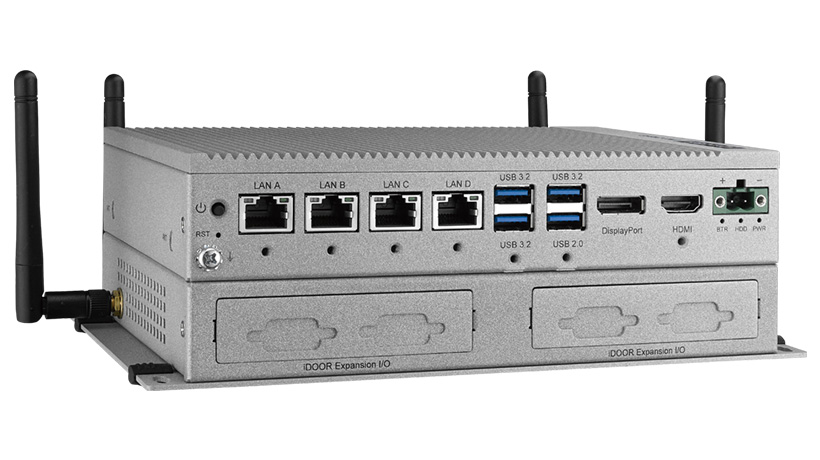

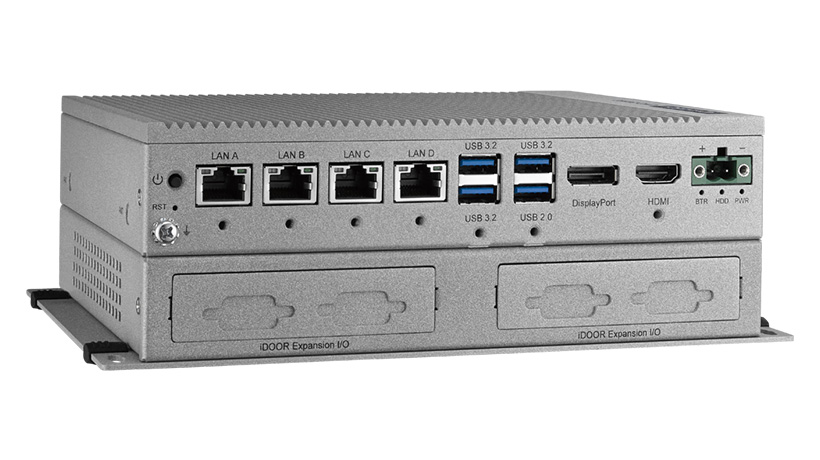

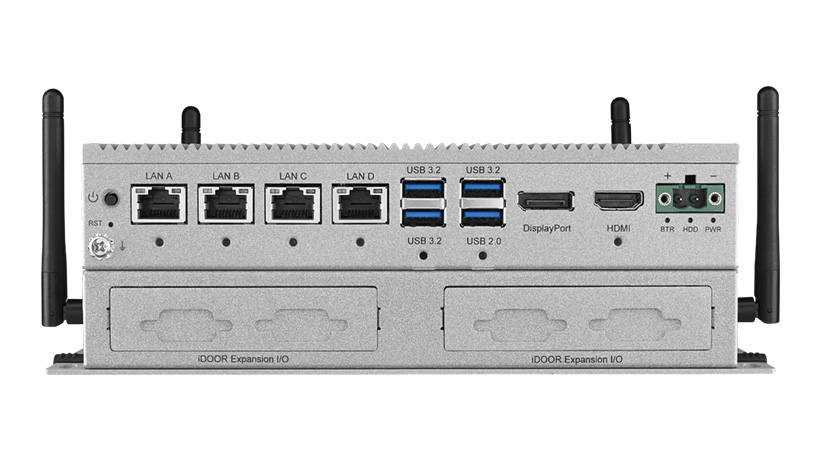

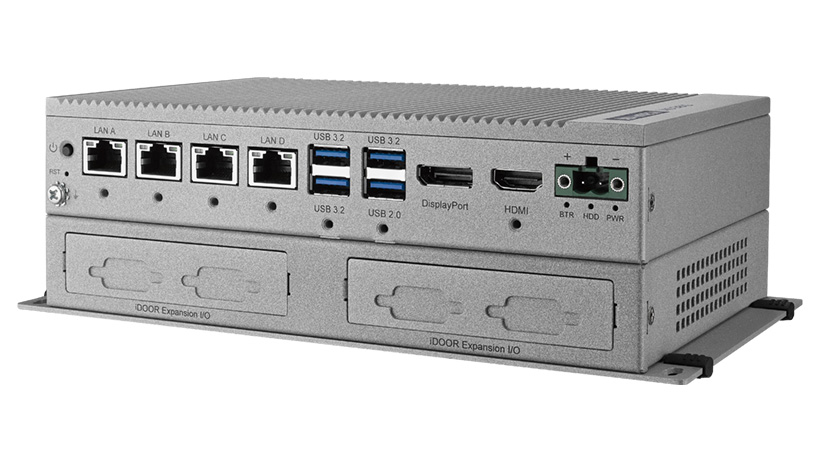

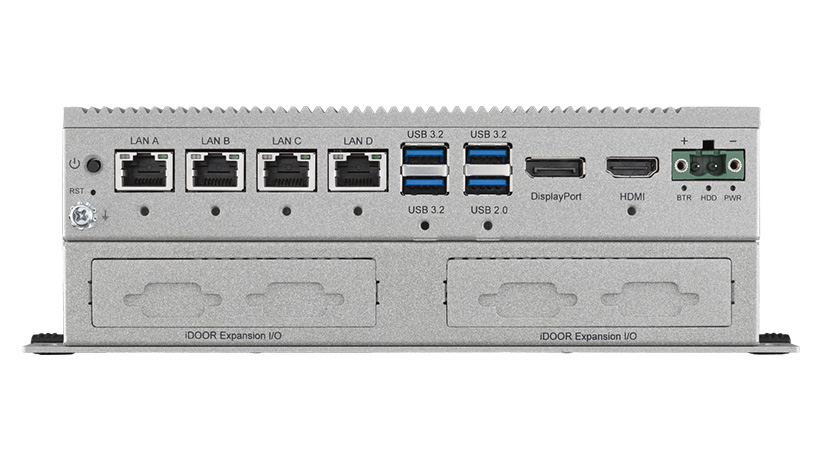

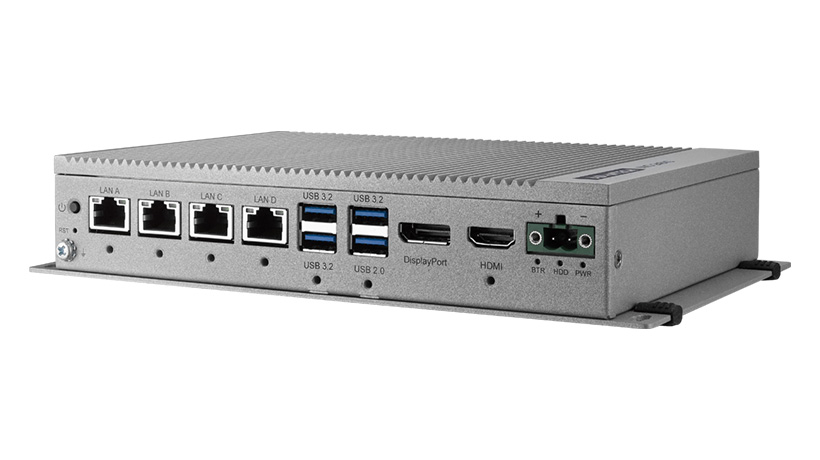

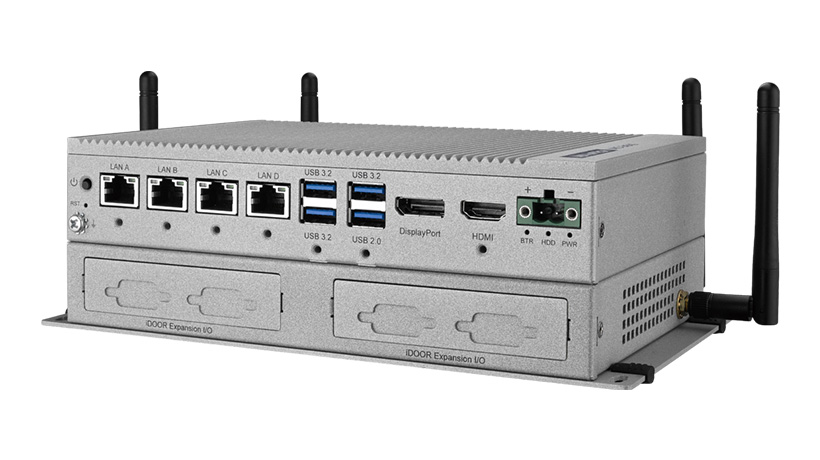

UNO-2484G-B731AE i7-1185G7E 1.8GHz, 8G RAM, 4xGbE, 4xUSB, HDMI

详细规格

Hardware

• CPU Intel® Core™ i7-1185G7E 1.8GHz Quad core
• Memory 2 x SO-DIMM Memory with 8 GB DDR4 3200 MHz
• Storage 1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay
• Certification CE, FCC, UL, CCC, BSMI
• OS Support Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
• Power Input 10~36 VDC

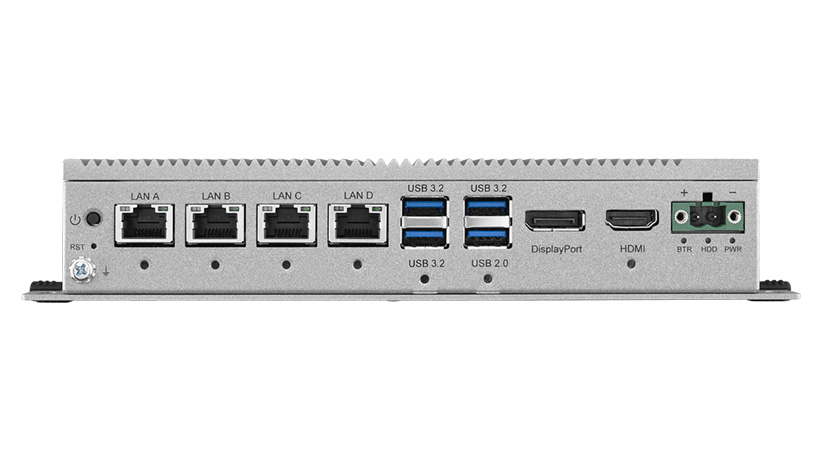

I/O Interface

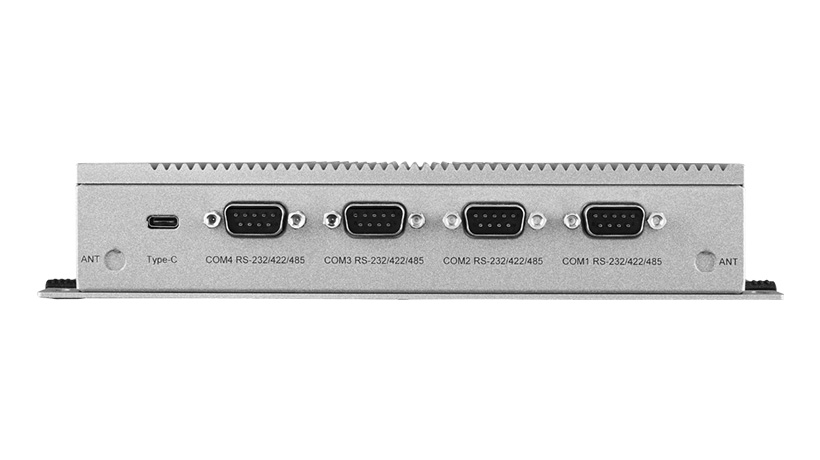

• Serial Ports 4 x RS-232/422/485
• USB Ports 3 x USB 3.2, 1 x USB 2.0
• Displays 1 x HDMI, 1 x DP
• Power Connector 1 x 2-Pin Terminal Block
• LAN Ports 3 x 10/100/1000/2500 Mbps, 1 x 10/100/1000 Mbps

Environment

• Relative Humidity 10~95% RH (non-condensing)
• Ingress Protection IP40
• Vibration Protection 3 Grms, random
• Shock Protection 50 G, half sine
• Storage Temperature -40~85 °C (-40~185 °F)

Mechanical

• Enclosure Aluminum housing
• Weight (Net) 1.4 kg ( 3.09 lb)
• Dimension (W x H x D) 200 x 140 x 70 mm

USB Vision

• Connector 1 x USB 3.2 Type C
