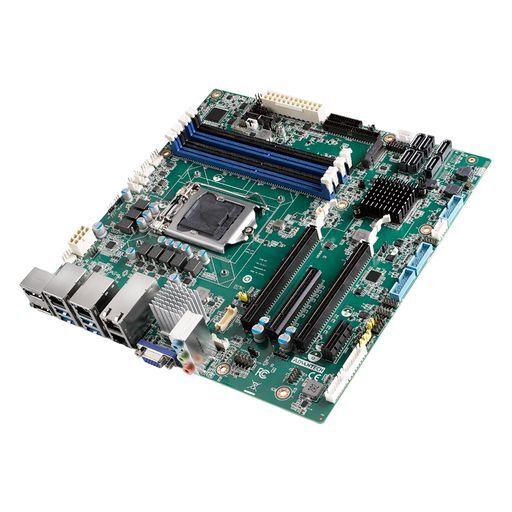

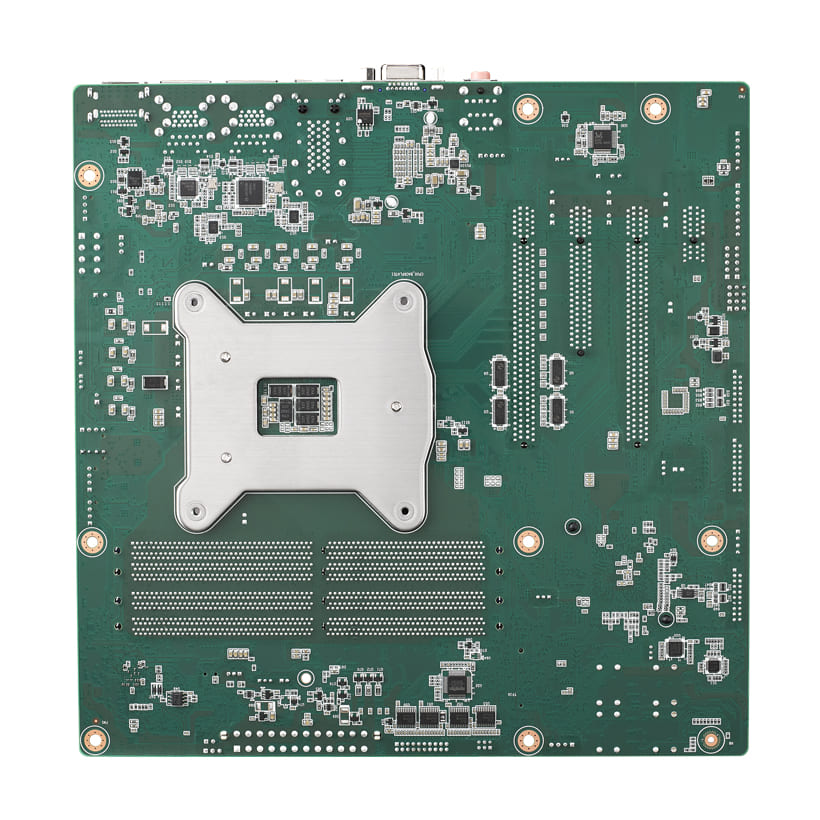

AIMB-587QG2-00A1E LGA1200 mATX 2DP/6SATA/6COM/12USB/2GbE/Q

详细规格

Display

• Controller Intel HD Graphics
• Graphic Engine DirectX 11.2, OpenGL 5.0, OpenCL 2.1
• Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed
• LCD (TTL/LVDS/eDP) eDP: support to 3840 x 2160 @ 60 Hz
• Multiple Display Dual/ Triple
• DDI (HDMI/DVI/DisplayPort) HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz

Form Factor

• Form Factor Micro ATX

I/O

• COM Port 6 ( 5 x RS232, 1 x RS232/ 422/ 485)
• USB2.0 6
• USB3.0 6
• GPIO 16-bit GPIO
• Smart Fan 5
• TPM Optional

Memory

• Technology Dual Channel DDR4, 2400/2666MHz ECC/Non-ECC with 288 pin U-DIMM
• Max. Capacity 128GB
• Socket 4 x 288-pin DIMM
• ECC Support N/A

Processor

• Chipset Intel Q470E
• L3 Cache 2 ~ 8MB
• BIOS AMI EFI 128Mbit
• Frequency 2.2GHz ~ 3.8GHz
• Core Number 10/8/6/4/2
• CPU TDP 65W / 35W

Storage

• SATA 6 x SATAIII (Max. Data Transfer Rate 600 MB/s)
• RAID Software RAID 0, 1, 5, 10

Operating System

• Microsoft Windows Yes
• Linux Yes
• SUSIAccess Yes
• Ubuntu V

Environment

• Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
• Non-Operational Temperature -40 ~ 85° C and 60° C @ 95% RH Non-Condensing
• Vibration Resistance 3.5 Grm (Non-Operation Mode)

Power

• Power Type ATX
• Battery Lithium 3 V / 200 mAh
• Power Consumption (Full Load) 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
• Connector ATX24P

Ethernet

• Controller GbE1: Intel i219LM; GbE2: Intel i210
• Connector RJ45 x 2
• Speed 10/ 100/ 1000 Mbps

Audio

• Audio Interface HD Audio
• CODEC Realtek ALC888S, High Definition Audio (HD)
• Connector 2 (Line out, Mic-in)

Watchdog Timer

• WatchDog Timer Yes

Certification

• EMC CE, FCC

Expansion

• SMBus 1
• PCI Express x 16 1
• PCI Express x 1 1
• PCI Express x 4 1
• PCI Express x 8 option

Physical

• Weight 1.2 kg (2.64 lb), weight of total package
• Dimension (mm) 244 x 244 mm
